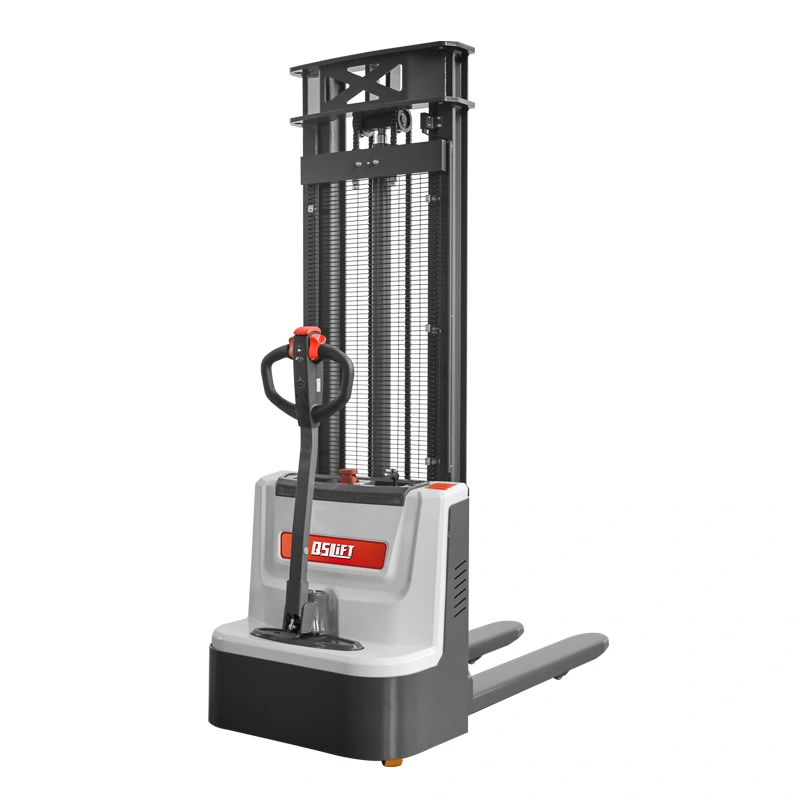

QES15M Electric Pallet Stacker – 1500kg
The QSLIFT QES15M electric pallet stacker combines powered travel and lifting for everyday pallet transport and stacking. Rated at 1500 kg, it features a reinforced mast, tandem polyurethane load wheels and creep speed mode for careful positioning. Lead-acid battery power is specified, with lithium battery and PIN-code handle options available.
Standard Retail Price:
QES15M Electric Pallet Stacker – 1500kg
×
Description
Powered handling for storage and dispatch
The QES15M helps operators move and stack palletised goods between receiving, storage and dispatch areas. Electric travel and lifting reduce manual handling effort, while the pedestrian design allows the operator to guide the truck from the tiller.
Convenient controls for pallet positioning
Travel, lifting and lowering controls are grouped at the handle for straightforward operation. Creep speed mode supports slow approaches when aligning the forks with pallets or positioning loads near storage locations. A battery indicator keeps charge status visible during use.
Reinforced mast with guided movement
The mast assembly incorporates steel side roller guides to reduce friction and support smooth movement. A high-strength chassis provides a rigid base for handling, while tandem polyurethane load wheels support the pallet during transport.
Mast and fork configurations
Different mast heights allow the QES15M to be selected around your stacking requirements. Fork width options help match the truck to your pallets. Check lowered mast height, extended mast height and pallet compatibility before choosing a configuration.
Battery choices for your workload
The brochure describes lead-acid battery power with lithium available as an option. Discuss your handling frequency and charging arrangements with QSLIFT to confirm the battery and matched charger for your operation.
Operator functions and diagnostic support
An emergency reverse function, accessible emergency stop button, horn and electromagnetic brake support controlled operation. Magnetic-key activation controls access, with an optional PIN-code handle available. The CAN-BUS system monitors vehicle status and provides automatic fault diagnostics to assist troubleshooting.
The pipe-free hydraulic lifting system removes external hydraulic pipe joints, reducing potential leakage points.
Specifications
Core Specifications
| Parameter | QES15M |
| Rated load capacity | 1500 kg |
| Battery type | Lead-acid; lithium optional |
| Battery voltage / capacity | 24 V / 85 Ah* |
| Fork length | 1150 mm |
| Operation | Pedestrian, with electric travel and lifting |
Mast, Battery and Fork Options
| Configuration | Listed specification |
| Two-stage mast — maximum fork height | 2000 / 2500 / 3000 / 3500 mm |
| Outside fork width options | 560 / 685 mm |
| Optional battery type | Lithium; specifications require confirmation |
| Optional handle | PIN-code access |
