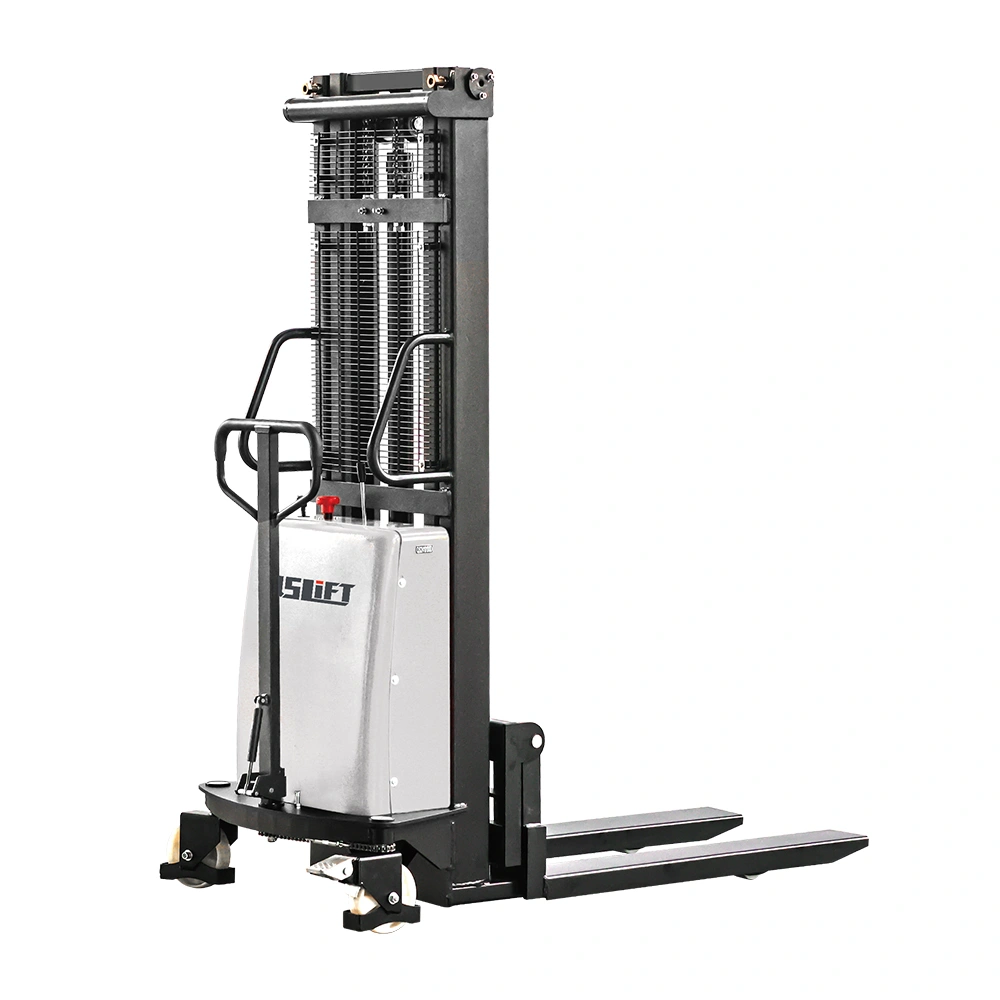

QSLIFT QSS15 semi-electric pallet stacker with solid metal forks and protective mast grille

QSS15 Semi-Electric Pallet Stacker – 1500 kg

The QSLIFT QSS15 semi-electric pallet stacker combines battery-powered lifting with manual travel for short-distance handling and stacking. Rated at 1500 kg, it features solid metal forks, a reinforced mast frame and accessible fork-height controls. Different mast configurations allow you to match the stacker to your required stacking height and available clearance.
Standard Retail Price:
Distributor Application
QSS15 Semi-Electric Pallet Stacker – 1500 kg
×
VIEW
Description
Electric lifting with manual travel
The QSS15 provides powered lifting for operations where pallets need to be raised and moved over short distances. Operators move the stacker manually and use the lift control to position the forks, reducing the pumping effort associated with a fully manual stacker.
Mast options for your storage layout
A choice of mast configurations supports different stacking requirements. Select the mast according to your required fork height, doorway clearance and overhead space. Both the lowered and fully extended mast dimensions should be considered when matching the truck to your premises.
Solid forks and reinforced construction
Solid metal forks and support legs provide a robust structure for pallet handling. The reinforced mast frame supports the lifting assembly, while long handles and a tiller assist manual steering and positioning.
Accessible fork-height control
A dedicated control lever allows operators to raise and lower the forks to the required position. Battery-powered hydraulic lifting supports routine pallet placement and retrieval without manual pumping.
Straightforward hydraulic design
The pipe-free hydraulic lifting system removes external hydraulic pipe joints, reducing potential leakage points. Mechanical braking provides a means of securing the truck when stationary.
Battery configuration for your workload
The QSS15 uses a battery to power its lifting system. Additional battery capacities with matched chargers are mentioned in the brochure. Discuss your lifting frequency and charging arrangements with QSLIFT to confirm a suitable configuration.
ParameterQSS15
Rated load capacity1500 kg
OperationManual travel and electric lifting
Battery voltage / capacity12 V / 120 Ah
Fork length1150 mm
Mast and Fork Configuration Options
Mast configurationMaximum fork height options
Single-stage mast1600 mm
Two-stage mast2000 / 2500 / 3000 / 3500 mm
