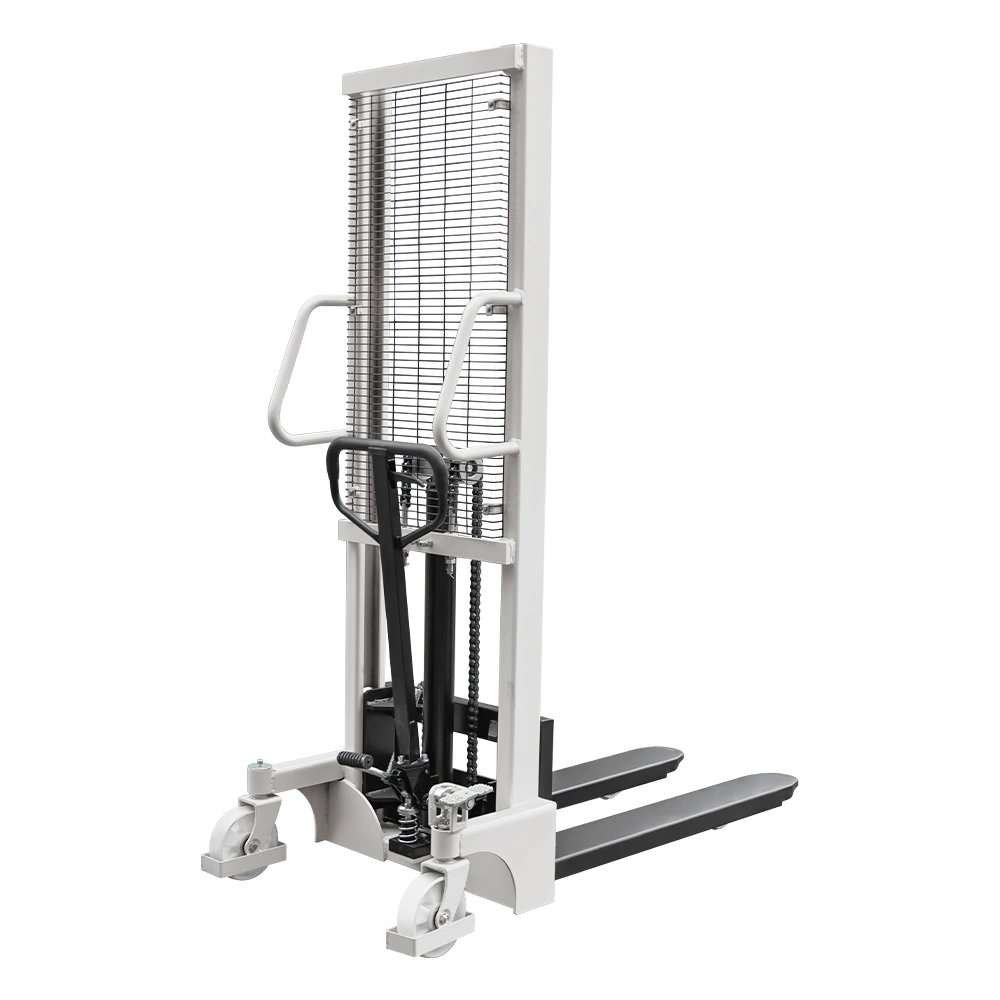

QMS Manual Pallet Stacker – 1000–2000 kg
The QSLIFT QMS manual pallet stacker provides manual hydraulic lifting and pedestrian transport for everyday stacking tasks. The range offers different load capacities, lift heights and fork configurations to suit your pallets and storage layout. A robust steel structure, long rubber-grip tiller and accessible lubrication points support straightforward operation and routine maintenance.
Standard Retail Price:
QMS Manual Pallet Stacker – 1000–2000 kg
×
Description
Practical lifting for occasional stacking tasks
The QMS range provides a manually operated solution for raising, positioning and moving palletised goods over short distances. It suits operations where stacking is occasional and a powered truck is not required. Choose the model according to your load weight, required lift height and pallet dimensions.
Configurations for different storage requirements
Single-frame and double-frame models offer a choice of capacities and lifting heights. Fork length options allow you to match the stacker to your pallets. Confirm the complete configuration before ordering, particularly when selecting a model for higher stacking positions.
Robust structure and straightforward handling
The C-section steel structure supports the lifting assembly, while the high-strength chassis provides a rigid base for handling. A long tiller with a rubber grip assists manual steering and positioning. Protective components around the wheel frames help shield these areas during use.
Manual hydraulic lifting
The hydraulic system allows operators to adjust the fork height without battery power. Its pipe-free design removes external hydraulic pipe joints, reducing potential leakage points. Manual travel and lifting also remove the need to plan charging around occasional handling tasks.
Accessible routine maintenance
Grease fittings on the wheel frames provide access for bearing lubrication. This supports routine maintenance and helps keep the stacker ready for daily use.
Specifications
| Parameter | QMS Range |
| Load capacity options | 1000 / 1500 / 2000 kg |
| Lift height range | 1600–3000 mm, depending on model |
| Operation | Manual travel and hydraulic lifting |
| Battery type / capacity | Not applicable — manual operation |
| Fork dimensions | Multiple configurations; see options below |
| Series | Models | Rated capacity | Lift height |
| Single frame | QMS1016 / QMS1516 / QMS2016 | 1000 / 1500 / 2000 kg respectively | 1600 mm |
| Double frame | QMS1020 / QMS1025 / QMS1030 | 1000 kg | 2000 / 2500 / 3000 mm respectively |
| Double frame | QMS1520 / QMS1525 / QMS1530 | 1500 kg | 2000 / 2500 / 3000 mm respectively |
