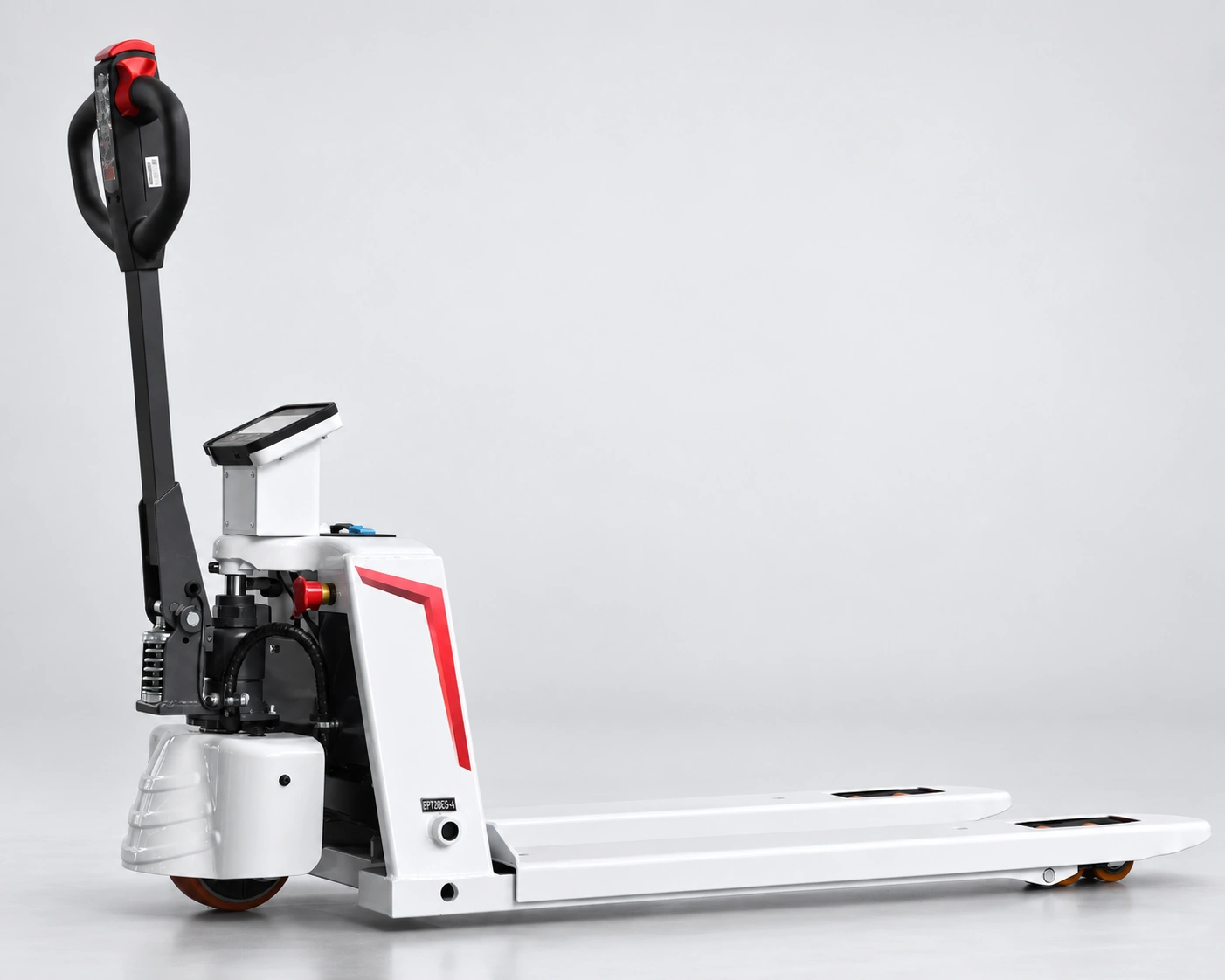

EPT20ES Electric Pallet Truck with Built-in Scale – 2000 kg
The QSLIFT EPT20ES electric pallet truck with scale combines powered travel, electric lifting and integrated weighing for loads up to 2000 kg. A replaceable lithium battery supports convenient charging, while creep speed mode helps with careful pallet positioning. Fork size options and an optional PIN-code handle allow you to configure the truck for your handling requirements.
| Load Capacity | 2000kg |
|---|---|
| Battery Type | Lithium-Ion |
| Battery | 48 V / 15 Ah |
| Weighing Accuracy | ±0.1% |
| Fork Length | 1150 mm, 1220 mm（Optional) |
Standard Retail Price:
EPT20ES Electric Pallet Truck with Built-in Scale – 2000 kg
×
Description
Pallet transport and weight checks in one workflow
The EPT20ES allows operators to move palletised goods and check their weight using the same equipment. Electric travel and lifting reduce manual handling effort, while the integrated scale removes the need to transfer pallets to a separate weighing platform for routine checks. It is a practical option for receiving, storage and dispatch operations.
Integrated digital weighing

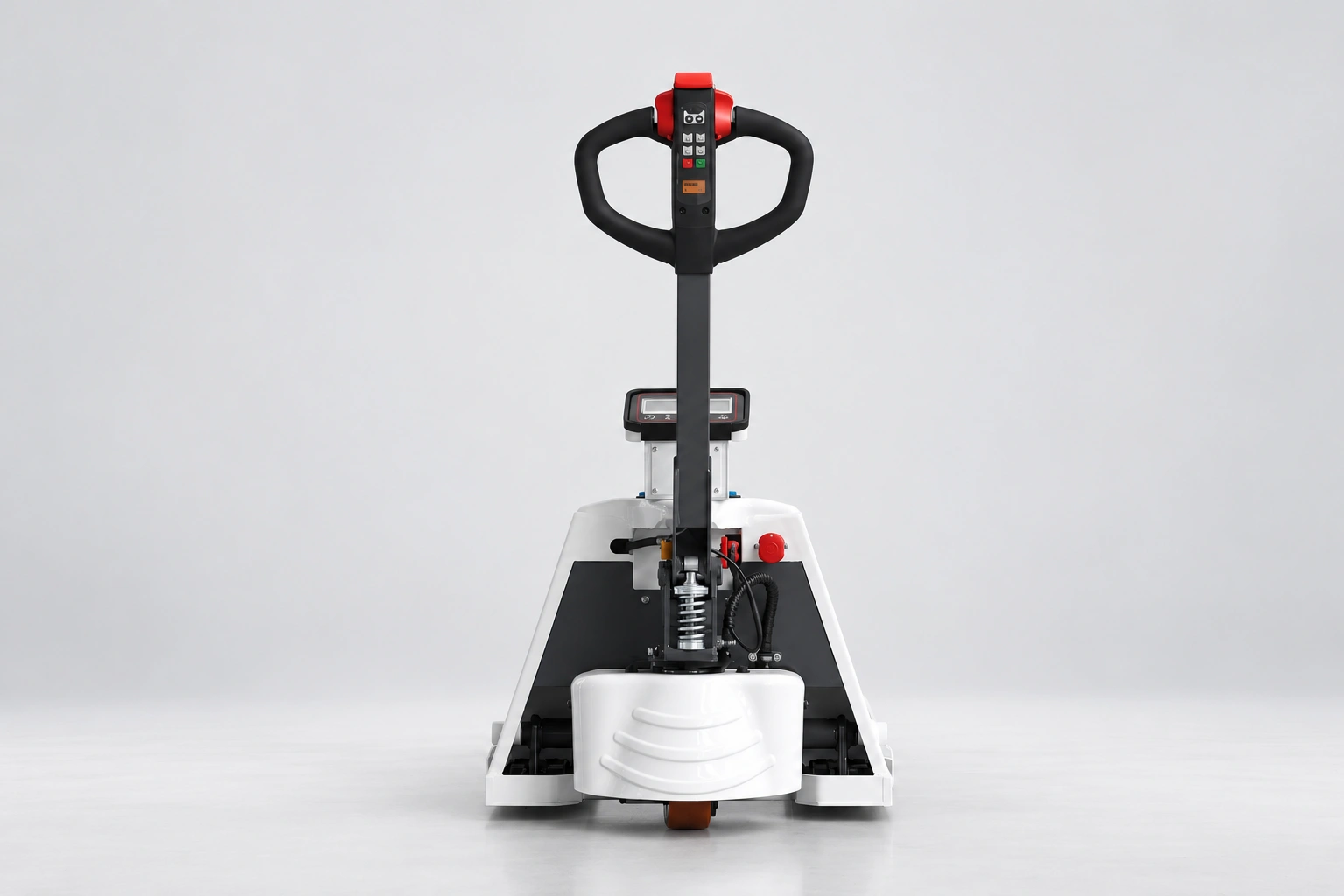

Four weighing sensors connect to a digital indicator positioned in front of the tiller. Operators can stop, check the load weight and continue with the handling task, keeping weighing close to where goods are being moved.
Controlled movement and positioning
Travel, lifting and lowering controls are grouped at the handle for convenient operation. Creep speed mode supports slow manoeuvring when approaching pallets or aligning the forks. The battery indicator keeps charge status visible during use.
Replaceable lithium battery
The removable lithium battery provides a convenient arrangement for charging and replacement. Select the battery and matched charger according to your daily workload and available charging opportunities.
Robust construction for daily handling

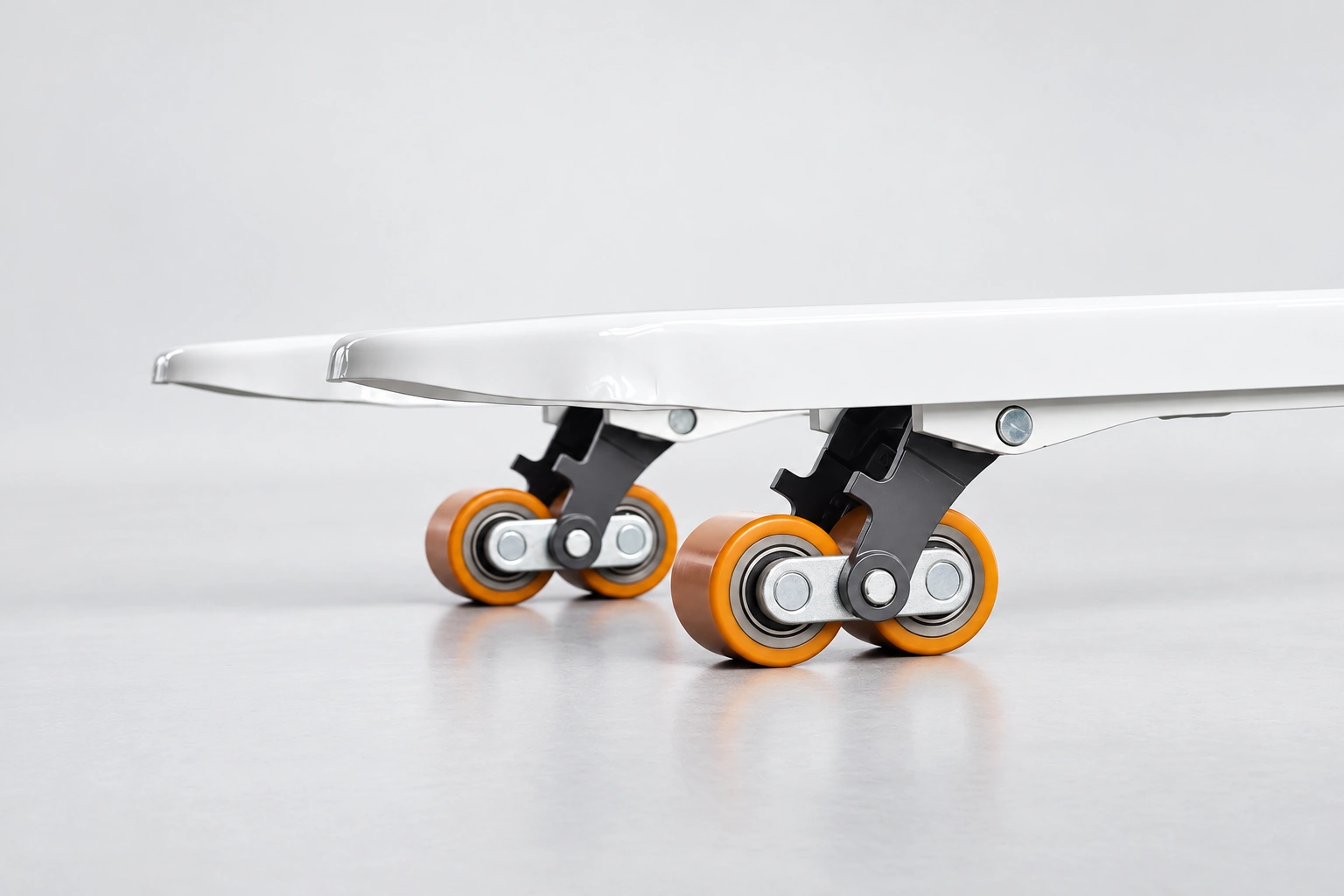

A high-strength chassis supports pallet transport, while a metal housing protects the drive motor. Tandem load wheels support the load during movement. The pipe-free hydraulic system removes external hydraulic pipe joints, reducing potential leakage points.
Access control and diagnostic support
The EPT20ES includes an emergency reverse function, horn, electromagnetic brake and removable magnetic key switch. An optional PIN-code handle provides an alternative way to control access. The CAN-BUS system monitors vehicle status and provides automatic fault diagnostics to assist troubleshooting.
Specifications
| No. | Specification | Unit / Symbol | EPT20ES |
| 1.3 | Power Source | Lithium battery | |
| 1.4 | Operator Type | Pedestrian | |
| 1.5 | Load Capacity | Q (t) | 2.0 |
| 1.6 | Load Centre Distance | C (mm) | 600 |
| 1.8 | Distance Drive Axle to Fork | X (mm) | 910 |
| 1.9 | Wheelbase | Y (mm) | 1220 |
| 2.1 | Service Weight (with battery) | kg | 172 |
| 2.2 | Laden Axle Load (Front / Rear) | kg | — |
| 2.3 | Unladen Axle Load (Front / Rear) | kg | — |
| 3.1 | Wheel Material | Polyester iron core | |
| 3.2 | Front Wheel Dimension | Ø×w (mm) | Ø190×70 |
| 3.3 | Rear Wheel Dimension | Ø×w (mm) | Ø80×70 |
| 3.4 | Stabilizer Wheel Dimension | Ø×w (mm) | — |
| 3.5 | Quantity of Front / Rear Wheels (x = drive wheel) | 1x/4 | |
| 3.6 | Track Width, Front | b10 (mm) | — |
| 3.7 | Track Width, Rear | b11 (mm) | 390/510 |
| 4.4 | Max. Lifting Height | h3 (mm) | 110 |
| 4.9 | Min. / Max. Tiller Operating Height | h14 (mm) | 600/1200 |
| 4.15 | Min. Lowered Fork Height | h13 (mm) | 85 |
| 4.19 | Overall Truck Length | l1 (mm) | 1540 |
| 4.20 | Length to fork face | l2 (mm) | 395 |
| 4.21 | Overall Truck Width | b1 (mm) | 570/690 |
| 4.22 | Fork Dimensions Thickness × Width × Length | mm | 60 × 180 × 1150 (1220 opt.) |
| 4.25 | Outer Fork Spacing | b5 (mm) | 570/690 |
| 4.32 | Ground Clearance, Center of Wheelbase | m2 (mm) | 30 |
| 4.33 | Min. Aisle Width For 1000×1200 Cross Pallets | Ast (mm) | 2157 |
| 4.34 | Min. Aisle Width For 800×1200 Lengthwise Pallets | Ast (mm) | 2044 |
| 4.35 | Minimum Turning Radius | Wa (mm) | 1350 |
| 5.1 | Travel Speed (Laden / Unladen) | km/h | 4.2/4.5 |
| 5.2 | Lifting Speed (Laden / Unladen) | m/s | 0.017/0.022 |
| 5.3 | Lowering Speed (Laden / Unladen) | m/s | 0.03/0.026 |
| 5.8 | Max. Gradeability (Laden / Unladen) | % | 6/10 |
| 5.10 | Service Brake Type | Electromagnetic | |
| 6.1 | S2 60min Rated Drive Motor Output | kW | 0.85 |
| 6.2 | S3 10% Rated Lift Motor Output | kW | 0.5 |
| 6.3 | Battery Standard DIN 43531/35/36 Class A/B/C | — | |
| 6.4 | Nominal Battery Voltage & Capacity | V/Ah | 48 / 15 |
| 6.5 | Minimum Battery Mass | kg | 4.5 |
| 6.6 | Energy Consumption Per VDI Cycle | kWh/h | — |
| 8.1 | Drive Control System | DC speed control | |
| 8.4 | Noise Level At Operator Position (EN 12053) | dB (A) | 67 |
Additional information
| Load Capacity | 2000kg |
|---|---|
| Battery Type | Lithium-Ion |
| Battery | 48 V / 15 Ah |
| Weighing Accuracy | ±0.1% |
| Fork Length | 1150 mm, 1220 mm（Optional) |
