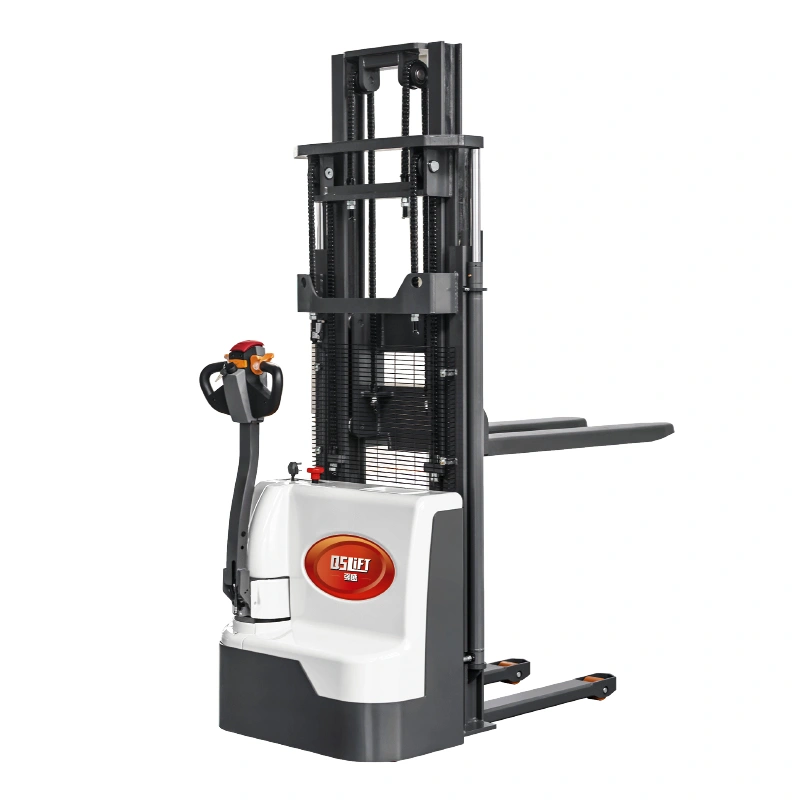

QSLIFT QES15E-PV pedestrian electric pallet stacker with raised forks and long steering tiller

QES15E-PV Electric Pallet Stacker – 1500 kg

The QSLIFT QES15E-PV electric pallet stacker combines powered travel and lifting with proportional valve control for fine fork-height adjustment. Rated at 1500 kg, it features lithium battery power, a long steering tiller and selectable travel speeds. Mast, battery capacity and fork size options allow you to match the truck to your stacking requirements.
Standard Retail Price:
Distributor Application
QES15E-PV Electric Pallet Stacker – 1500 kg
×
VIEW
Description
Fine control for pallet placement
The QES15E-PV uses proportional valve control to regulate lifting and lowering speed. This allows operators to make gradual fork-height adjustments when placing or retrieving pallets, supporting careful positioning at storage locations.
Powered travel and lifting
Electric travel and lifting reduce the manual effort involved in moving and raising palletised goods. The pedestrian layout and long tiller allow operators to steer the truck while accessing travel and lifting controls from the handle.
Selectable travel settings
The tiller includes selectable speed settings and an upright-tiller travel function. These provide additional control when positioning the truck where manoeuvring space is limited. Confirm the operating conditions for upright-tiller travel with the supplied configuration.
Robust load-handling structure
Solid metal support legs and a high-strength chassis provide a rigid base for handling. A reinforced lifting chain supports the mast mechanism. The pipe-free hydraulic system removes external hydraulic pipe joints, reducing potential leakage points.
Battery and mast choices
The brochure specifies lithium battery power and lists alternative battery capacities with matched chargers. Different mast configurations allow the truck to be selected around stacking height and overhead clearance. Check both lowered and extended mast dimensions before choosing a configuration.
Operator functions and diagnostic support
An emergency reverse function, accessible emergency stop button, horn and electromagnetic brake support controlled operation. The CAN-BUS system monitors vehicle status and provides automatic fault diagnostics to assist troubleshooting.
Core Specifications
ParameterQES15E-PV
Rated load capacity1500 kg
Battery typeLithium
Battery voltage / capacity24 V / 80 Ah; alternative capacity available
Fork length options1070 / 1150 mm
Lift controlProportional valve control
Mast, Battery and Fork Options
ConfigurationListed specification
Single-stage mast — maximum fork height1600 mm
Two-stage mast — maximum fork height2500 / 3000 / 3300 / 3500 mm
Three-stage mast — maximum fork height3500 / 4000 / 4500 mm*
Outside fork width options560 / 685 mm
Alternative battery capacity100 Ah
Optional tillerLarge tiller with proportional lift/lower controls
