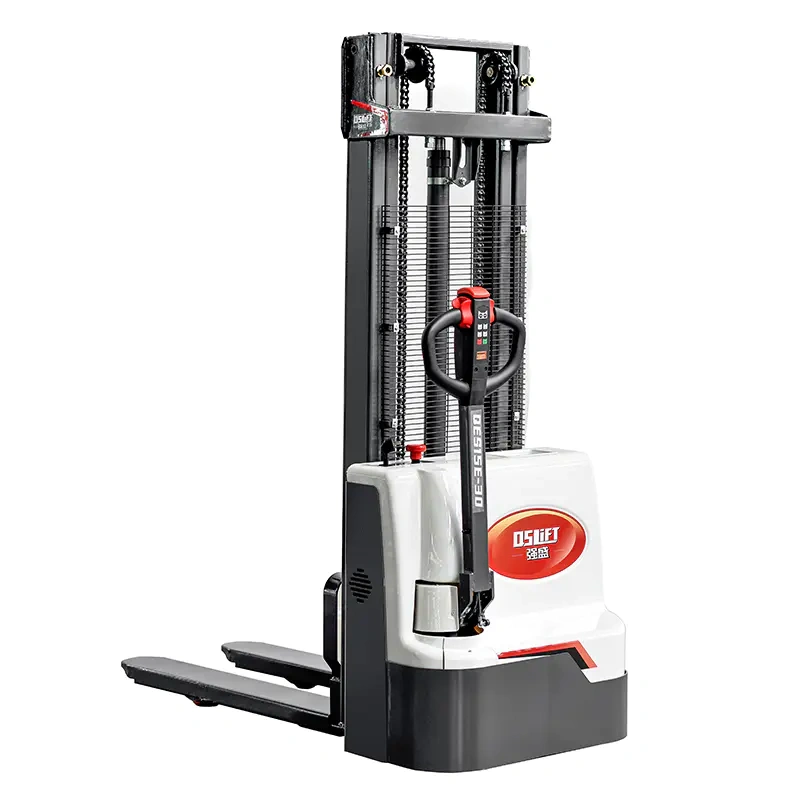

QSLiFT QES15E-35 Pedestrian Electric Stacker Capacity 1500 kg, Lift Height 3500mm

Product Overview The QES15E is the heavy-duty reinforced version within the QES series, featuring a rated capacity of 1500 kg. While maintaining a compact chassis and agile handling, this model has undergone core component upgrades to meet the demands of high-frequency and heavy-load stacking. Powered by a high-performance lithium-ion system, the QES15E provides an excellent balance of efficiency, durability, and operational cost for small to medium-sized warehouses.

Core Advantages

1. Lithium Drive & High Efficiency

• Battery Type: High-performance Plug-in Lithium Battery. Supports opportunity charging and rapid charging, eliminating maintenance burdens and ensuring maximum uptime during intensive operations.
• Operational Efficiency: Optimized for medium-duty conditions, the stable voltage output of the lithium system ensures consistent power during both lifting and travel.

2. Reinforced Structure & Secure Load Handling

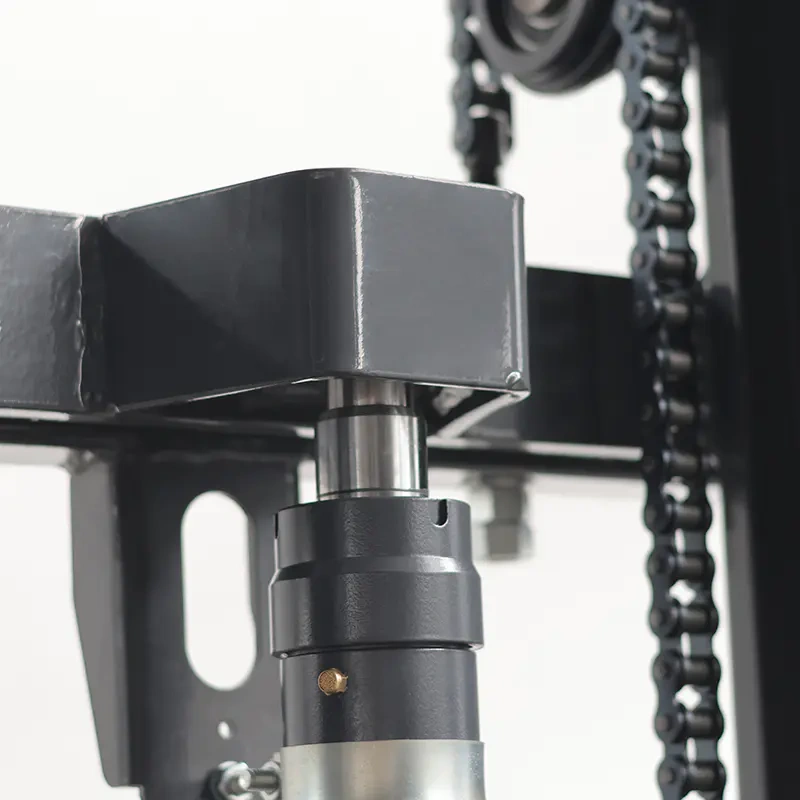

• Enhanced Lifting System: Equipped with national standard GB1244 plate chains instead of traditional roller chains, offering higher tensile strength and significantly improved safety factors for high-level stacking.
• Solid Metal Support Legs: The legs are crafted from solid flat iron, providing superior torsion resistance and structural rigidity to ensure chassis stability under full-load conditions.
• Thickened Mast Design: The precision mast side-wheel guide system minimizes friction and reduces sway, extending the service life of the equipment.

3. Ergonomics & Intelligent Control

• Long Tiller Design: The offset ergonomic long tiller significantly reduces steering effort and maintains a generous safety distance between the operator and the truck, offering a clearer view.
• Smart Safety Features: Standard magnetic tiller integrated with turtle speed mode and battery monitoring, with an optional pin-code lock for enhanced security.
• Reliable Hydraulic System: Features a hose-less hydraulic design, physically eliminating the risk of oil leakage, reducing maintenance costs, and keeping the work environment clean.

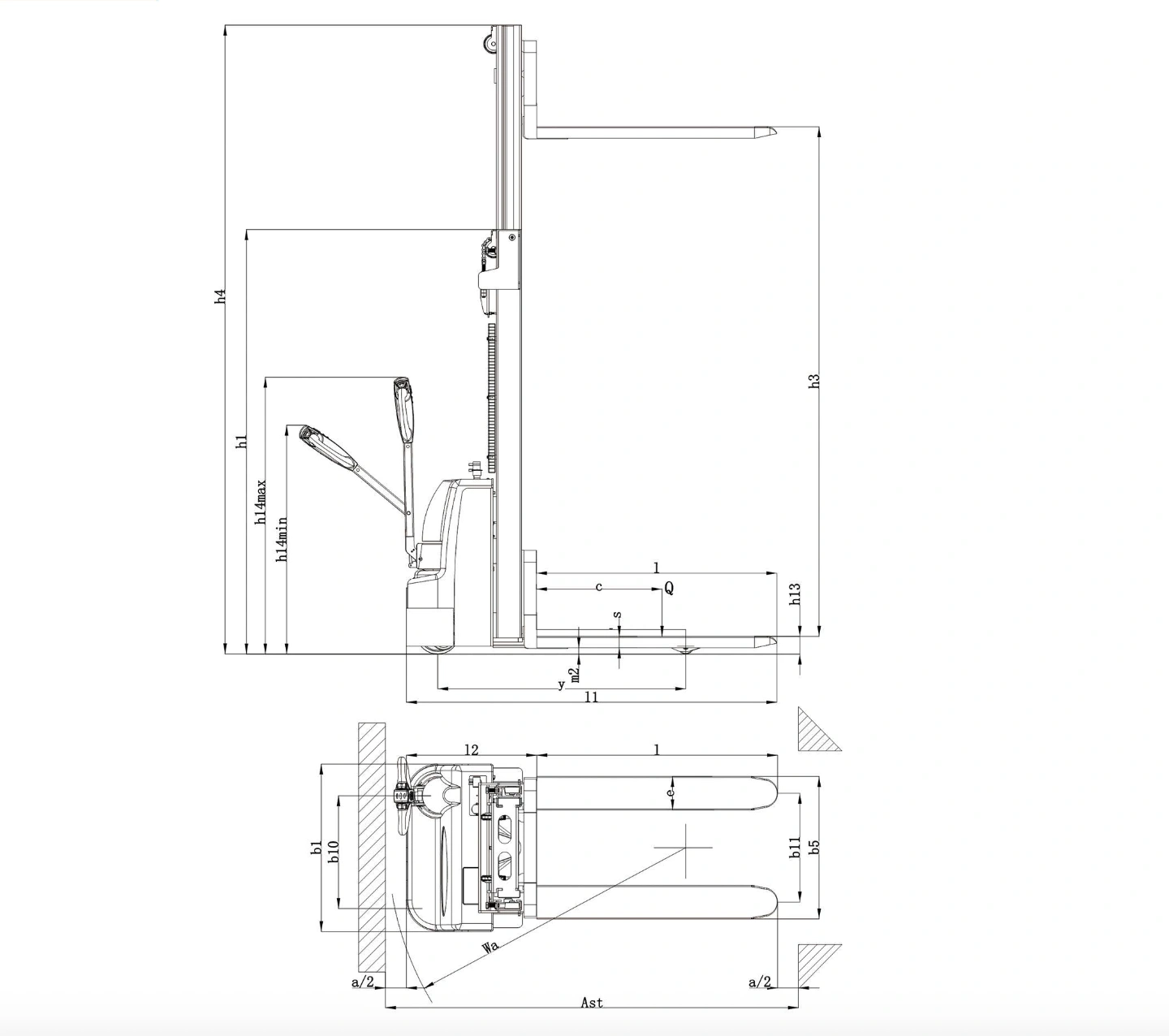

Core Technical Specifications

• Load Capacity: 1500 KG
• Lifting Height: 3500 MM
• Fork Dimensions: Fixed Type 560 x 1125 MM
• CANBUS Magnetic Suction Handle
• 2*12V/80Ah Maintenance-Free Batteries
• Built-in Charger
• High-Quality Controller & Hydraulic Pump Station
