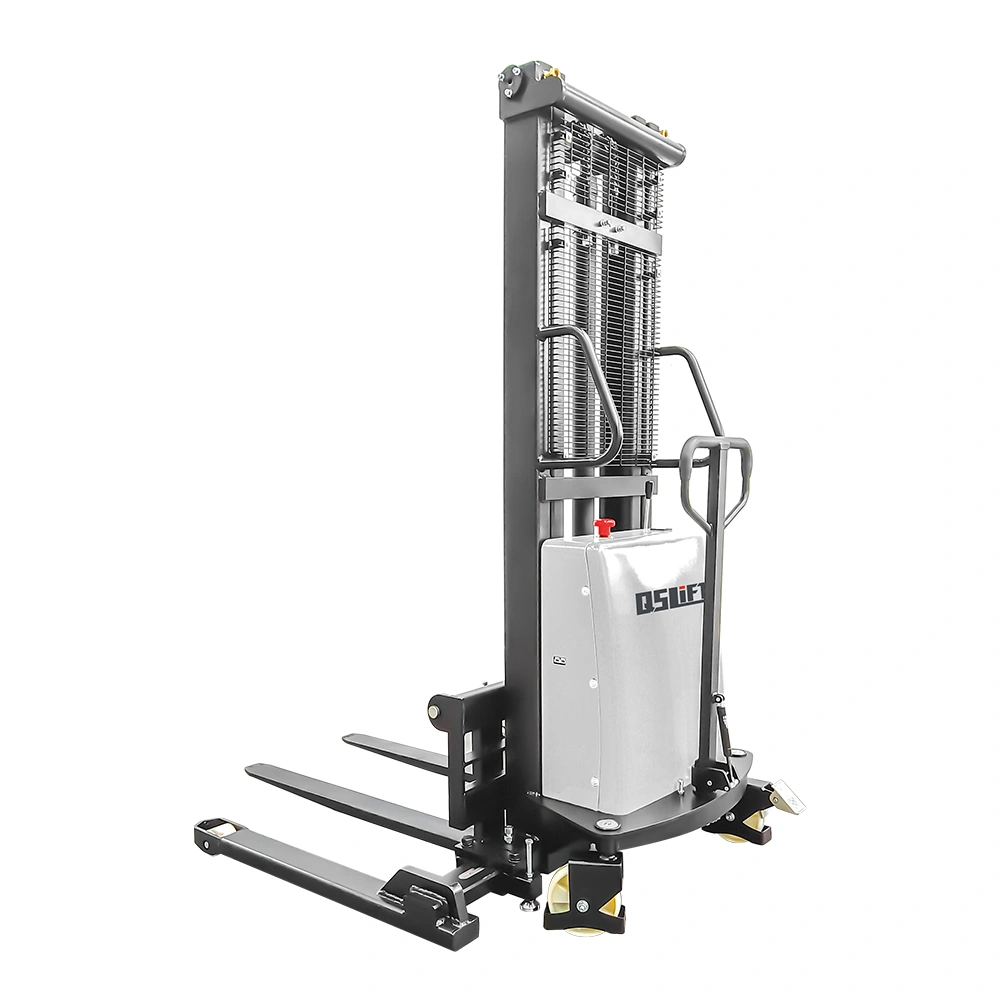

QSS15-SL Semi-Electric Straddle Stacker – 1500 kg
The QSLIFT QSS15-SL semi-electric straddle stacker combines electric lifting with manual travel for short-distance pallet handling. Rated at 1500 kg, it features adjustable support legs, adjustable fork spacing and a reinforced mast with steel side roller guides. Different mast configurations allow you to match the stacker to your pallets, stacking height and available clearance.
Standard Retail Price:
QSS15-SL Semi-Electric Straddle Stacker – 1500 kg
×
Description
Electric lifting with an adjustable straddle layout
The QSS15-SL provides powered lifting for operations where pallets need to be raised and moved over short distances. Its support legs sit outside the forks and can be adjusted to suit the handling arrangement. Adjustable fork spacing helps align the forks with different pallet entry positions.
Manual travel for short-distance handling
Operators move and steer the stacker manually using the long tiller. Electric lifting removes the need for manual hydraulic pumping, making the truck a practical option for occasional stacking and pallet positioning.
Reinforced mast with guided movement
The reinforced mast assembly incorporates steel side roller guides to reduce friction and support smooth mast movement. Solid metal support legs provide a rigid base for the lifting assembly.
Mast options for your storage layout
Choose a mast configuration according to your required fork height, doorway clearance and overhead space. Check both the lowered and fully extended mast dimensions when selecting a model for your premises.
Accessible lifting controls
A dedicated control lever operates the electric lifting system, allowing the operator to adjust fork height from the control position. An accessible emergency stop button and mechanical braking support controlled operation.
Straightforward hydraulic design
The pipe-free hydraulic lifting system removes external hydraulic pipe joints, reducing potential leakage points. Battery capacity options with matched chargers are mentioned in the brochure, allowing the supplied configuration to be discussed around your lifting workload.
Specifications
| Parameter | QSS15-SL |
| Rated load capacity | 1500 kg |
| Operation | Manual travel and electric lifting |
| Battery voltage / capacity | 12 V / 120 Ah |
| Fork length | 1150 mm |
Mast and Fork Configuration Options
| Mast configuration | Maximum fork height options |
| Single-stage mast | 1600 mm |
| Two-stage mast | 2000 / 2500 / 3000 / 3500 mm |
