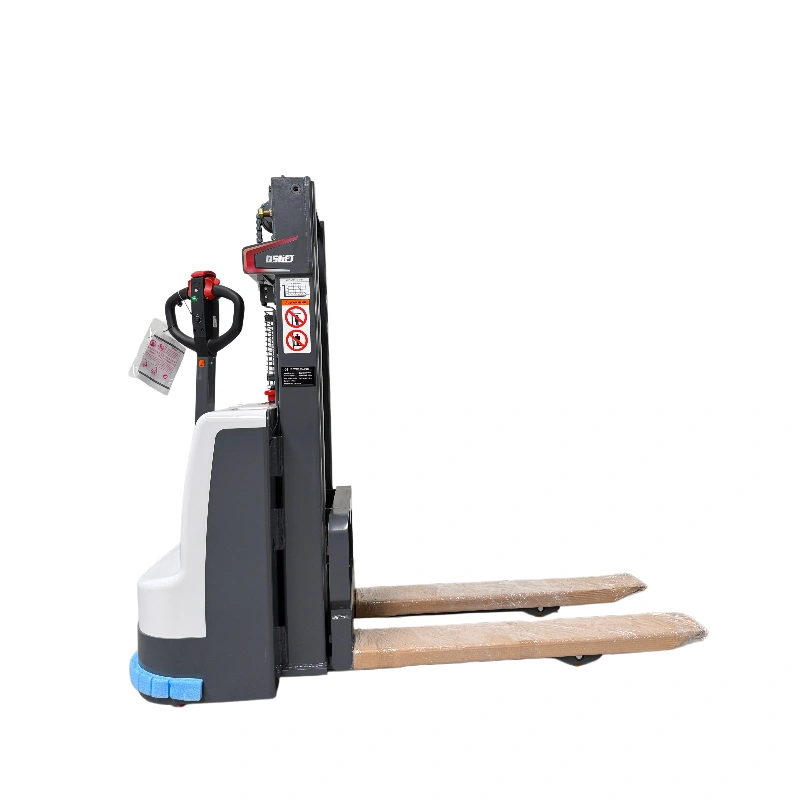

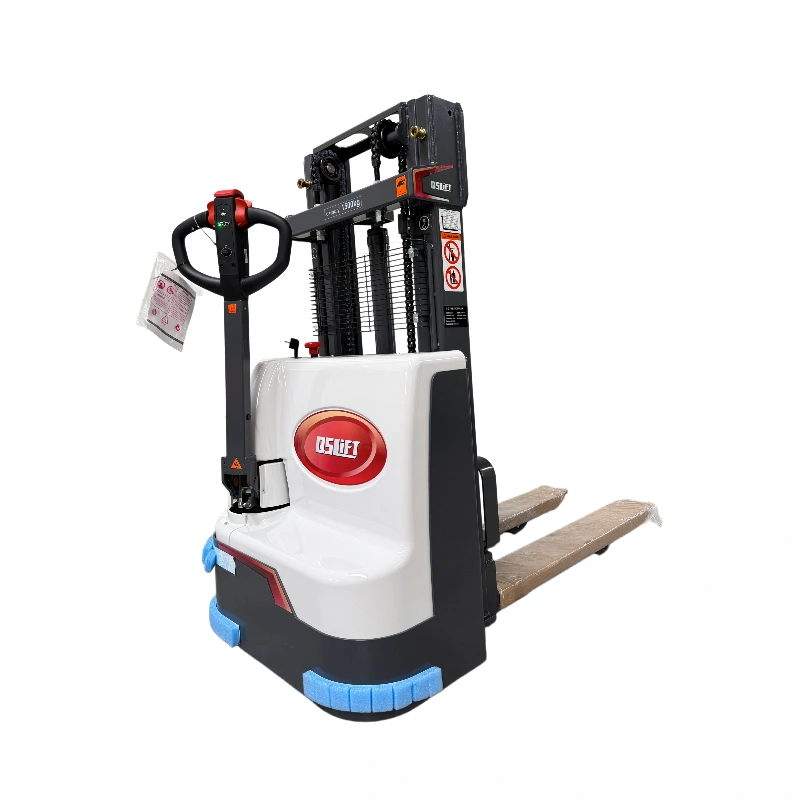

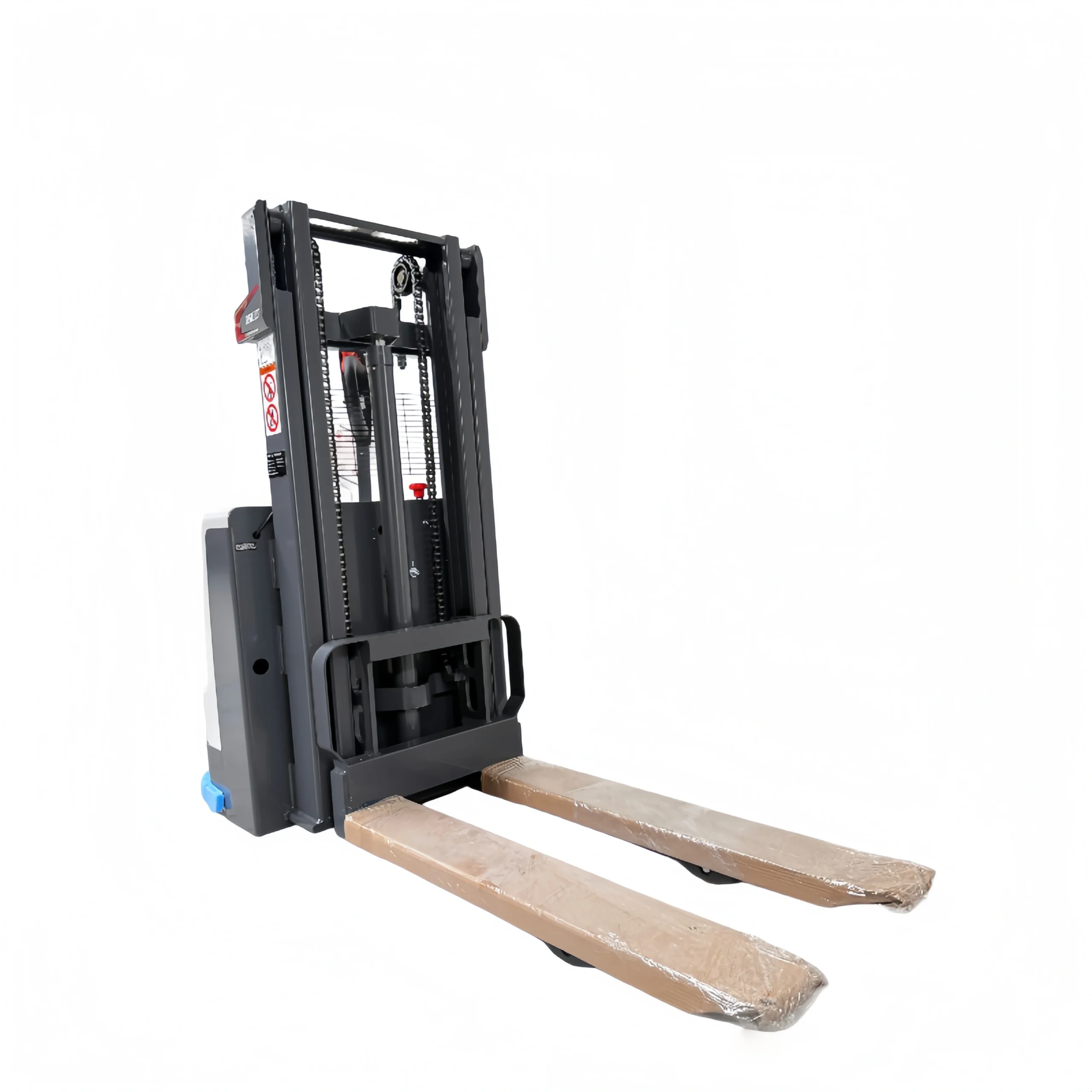

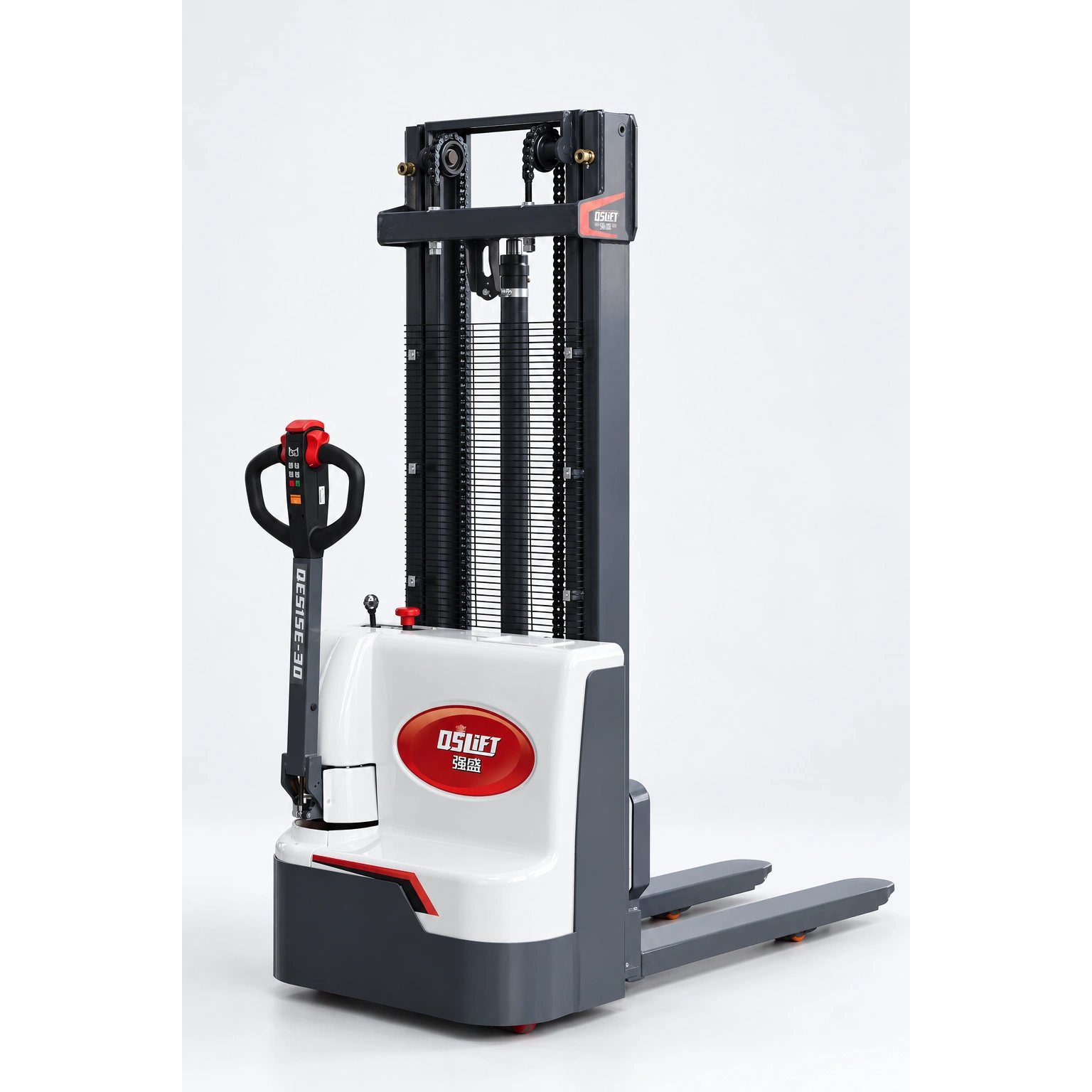

QSLiFT QES15E-20 Electric Walkie Stacker, capacity 1500kg, lift height 2000mm

The QES15E-20 is a heavy-duty, economical pedestrian electric stacker from the QES series. It is specially designed for small and medium-sized warehouses. With a 2000 mm lift height and a 1500 kg capacity, it combines a compact structure with standard forks. Consequently, it delivers strong load capacity and flexible operation.

It excels at high-frequency stacking and material handling tasks. Therefore, it perfectly meets medium-heavy load requirements with high cost efficiency and reliable safety performance.

Maintenance-Free Lead-Acid Battery

The machine is equipped with a high-performance 24V / 85Ah (2x12V) AGM maintenance-free lead-acid battery system. As a result, no regular water refilling is needed. Additionally, the integrated built-in charger enables easy charging from standard outlets. This stable power output effectively minimizes your daily maintenance work.

Compact Design for Confined Spaces

The compact chassis ensures great maneuverability. For this reason, operators can achieve smooth movement in narrow aisles and high-density storage areas. Moreover, it is well-suited for small and medium-sized warehouses to maximize space utilization and working efficiency.

Standard Fork Design with Wide Compatibility

Standard fork dimensions (550 / 685 mm width x 1150 mm length) fit most standard industrial pallets. Furthermore, the optimized mast layout delivers unobstructed sightlines for accurate pallet stacking. At the same time, the ergonomic design relieves operator fatigue during extended working hours.

Reliable Structure and Safety Features

The reinforced steel mast works together with high-tensile plate chains. Thus, it guarantees outstanding stability and load performance at full lifting height. Meanwhile, solid flat iron support legs deliver high torsion resistance under 1.5-ton capacity loads.

The standard CAN-bus magnetic tiller controls travel direction, creep speed mode (turtle mode), and battery status. Additionally, an optional PIN code tiller is available for enhanced access security. Finally, the easy-to-reach emergency stop switch enables immediate shutdown in emergencies.

Cost-Effective & Versatile Performance

This model strikes a perfect balance between load capacity and overall operating cost. In addition, the ergonomic long tiller arm reduces steering effort while maintaining a safe operating distance. Therefore, it is widely applicable to medium-heavy load stacking and short-distance transport duties.

Ideal Stacking Equipment for Medium-Heavy Load Warehouses
With strong load capacity and excellent flexibility, the QES15E-20 provides a durable build quality. As a result, it stands out as a cost-effective vertical handling solution for facilities with medium-heavy load demands.
