QSLiFT EPT15V Electric Pallet Truck, Capacity 1500kg

EPT15V Lithium-ion Electric Pallet Truck

Load Capacity

1500kg

Battery Type

Lithium-Ion

Battery

24V/20Ah

Fork Length

1150 mm

Fork Width

550 mm

Turning Radius (Wa)

1380mm

Standard Retail Price:
980.00€ + PDV
QSLiFT EPT15V Electric Pallet Truck, Capacity 1500kg
×
Description

The EPT15V is an entry-level lithium-ion powered electric pallet truck with a rated load capacity of 1500 kg. Designed as an ideal upgrade from traditional manual pallet trucks, it significantly improves efficiency, operator comfort, and workplace safety in light-duty material handling applications.

The EPT15V reduces physical strain caused by pulling and repetitive manual lifting, enhancing productivity while minimizing the risk of operator fatigue and injury.



The truck features a high-strength steel construction combined with a compact, lightweight chassis, ensuring structural durability and load stability while delivering exceptional maneuverability. A 4 mm steel protective cover together with an ABS dust-proof housing provides enhanced protection for key internal components in demanding warehouse environments.

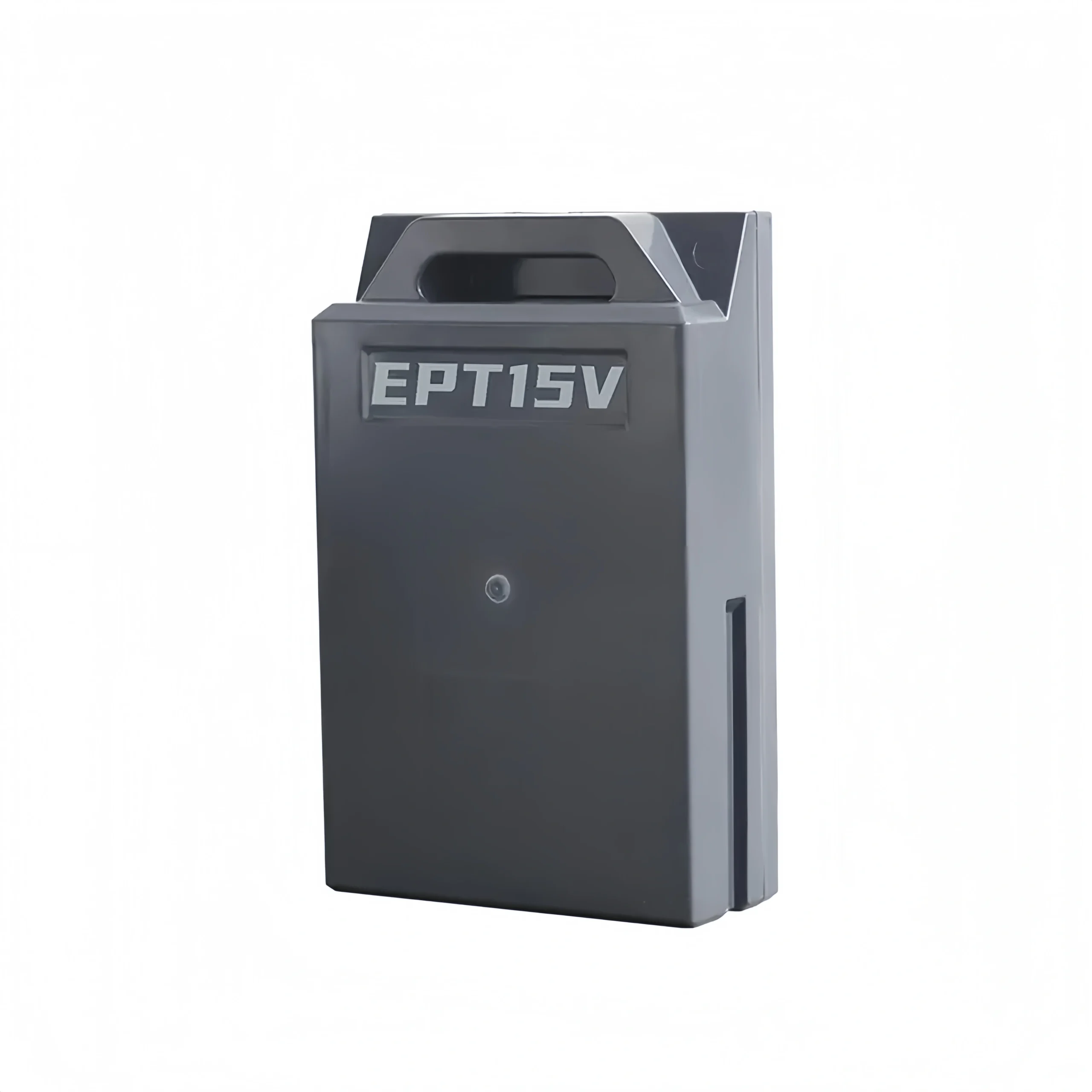

Equipped with a quick-exchange 24V lithium-ion battery system (standard 20Ah; optional 30Ah, 40Ah, or 50Ah), the EPT15V offers maximum operational flexibility. The lightweight battery pack can be easily removed and charged independently using an external fast charger at any standard power outlet, making it ideal for continuous multi-shift operations with a spare battery.



For intuitive operation, the truck comes standard with a magnetic multifunction tiller handle, integrating forward/reverse driving, creep speed mode for tight quarters, and a battery status display. A PIN code access handle is optionally available for enhanced security. The leak-resistant, hose-less hydraulic system ensures reliable lifting performance with low routine maintenance.

With a travel speed of 4.2 / 4.5 km/h (laden/unladen), gradeability up to 6% (laden) / 10% (unladen), and low noise operation (≤70 dB(A)), the EPT15V offers an optimal balance between performance, ergonomics, and cost-efficiency.

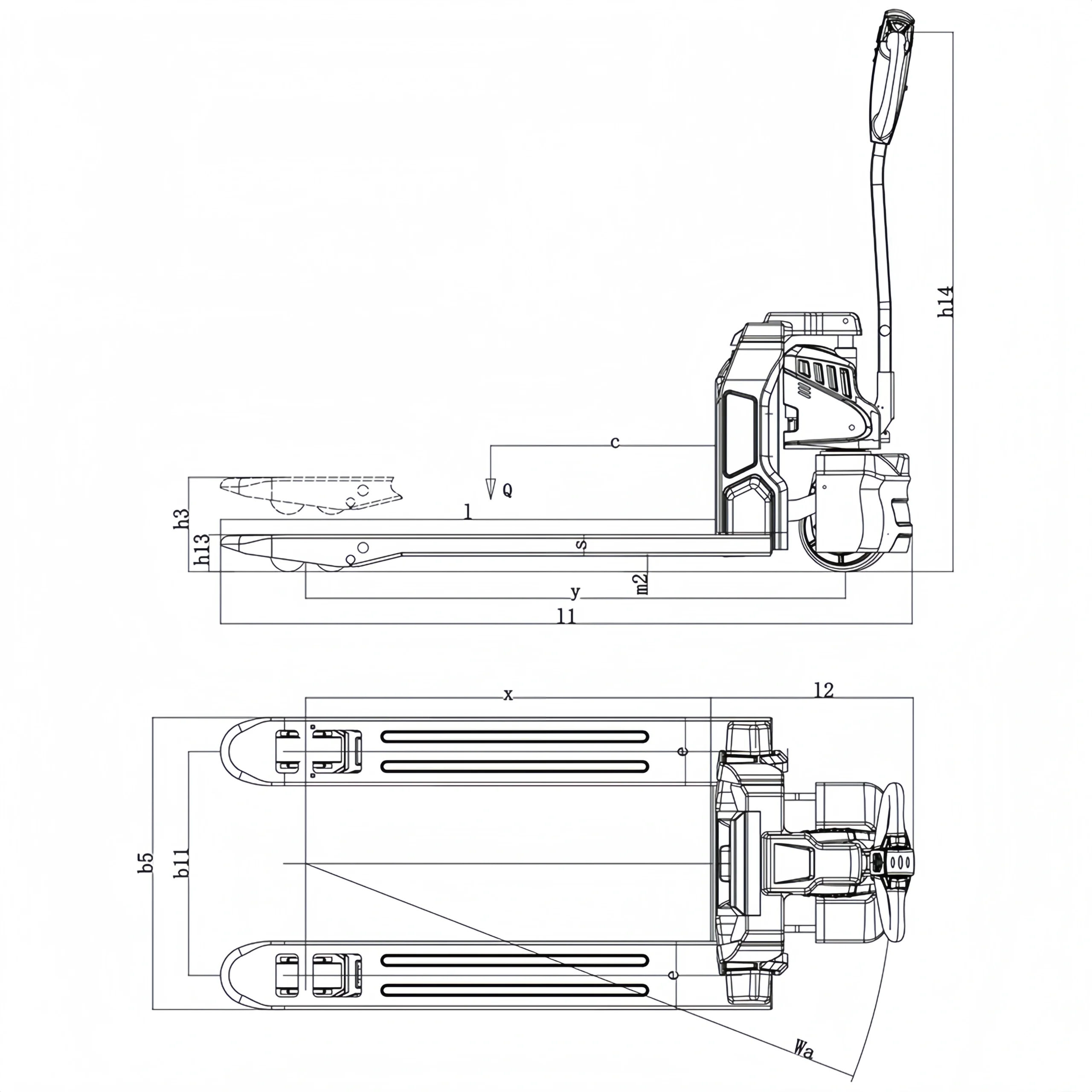

Manufacturer’s type designationEPT15VEPT20V
Identification Code
1.3Power SourceLithium Battery
1.4Operator TypePedestrian
1.5Load CapacityQ (t)1.52.0
1.6Load Centre DistanceC (mm)600
1.8Distance Drive Axle to ForkX (mm)950
1.9WheelbaseY (mm)1270
Mass
2.1Service Weight (with battery)kg142145
2.2Laden Axle Load (Front / Rear)kg828/1326
2.3Unladen Axle Load (Front / Rear)kg100/34.5
Wheels & Chassis
3.1Wheel MaterialPU
3.2Front Wheel DimensionØ × w (mm)Ø210×75
3.3Rear Wheel DimensionØ × w (mm)Ø80×70
3.4Stabilizer Wheel DimensionØ × w (mm)\
3.5Quantity of Front / Rear Wheels (x = drive wheel)1x/4
3.6Track Width, Frontb10 (mm)\
3.7Track Width, Rearb11 (mm)390/525
Overall Dimensions
4.4Max. Lifting Heighth3 (mm)110-115100
4.9Min. / Max. Tiller Operating Heighth14 (mm)585/1250
4.15Min. Lowered Fork Heighth13 (mm)75/85
4.19Overall Truck Lengthl1 (mm)1620
4.20Fork Tip Lengthl2 (mm)470
4.21Overall Truck Widthb1 (mm)550/685
4.22Fork Dimensions Thickness × Width × Lengthmm50/160/1150
4.25Outer Fork Spacingb5 (mm)550/685
4.32Ground Clearance, Center of Wheelbasem2 (mm)35
4.33Min. Aisle Width For 1000×1200 Cross PalletsAst (mm)2182
4.34Min. Aisle Width For 800×1200 Lengthwise PalletsAst (mm)2052
4.35Minimum Turning RadiusWa (mm)1380
Performance Data
5.1Travel Speed (Laden / Unladen)km/h4.2/4.5
5.2Lifting Speed (Laden / Unladen)m/s0.017/0.02
5.3Lowering Speed (Laden / Unladen)m/s0.04/0.04
5.8Max. Gradeability (Laden / Unladen)%6/10
5.10Service Brake TypeElectromagnetic
Drive & Lift Motors
6.1S2 60min Rated Drive Motor OutputkW0.750.9
6.2S3 10% Rated Lift Motor OutputkW0.50.8
6.3Battery Standard DIN 43531/35/36 Class A/B/C\
6.4Nominal Battery Voltage & CapacityV/Ah24/20(30,40,50)48/15(20)
6.5Minimum Battery Masskg5.5
6.6Energy Consumption Per VDI CyclekWh/h\
Other
8.1Drive Control SystemDC speed control
8.4Noise Level At Operator Position (EN 12053)dB (A)≤70
Load Capacity

1500kg

Battery Type

Lithium-Ion

Battery

24V/20Ah

Fork Length

1150 mm

Fork Width

550 mm

Turning Radius (Wa)

1380mm
