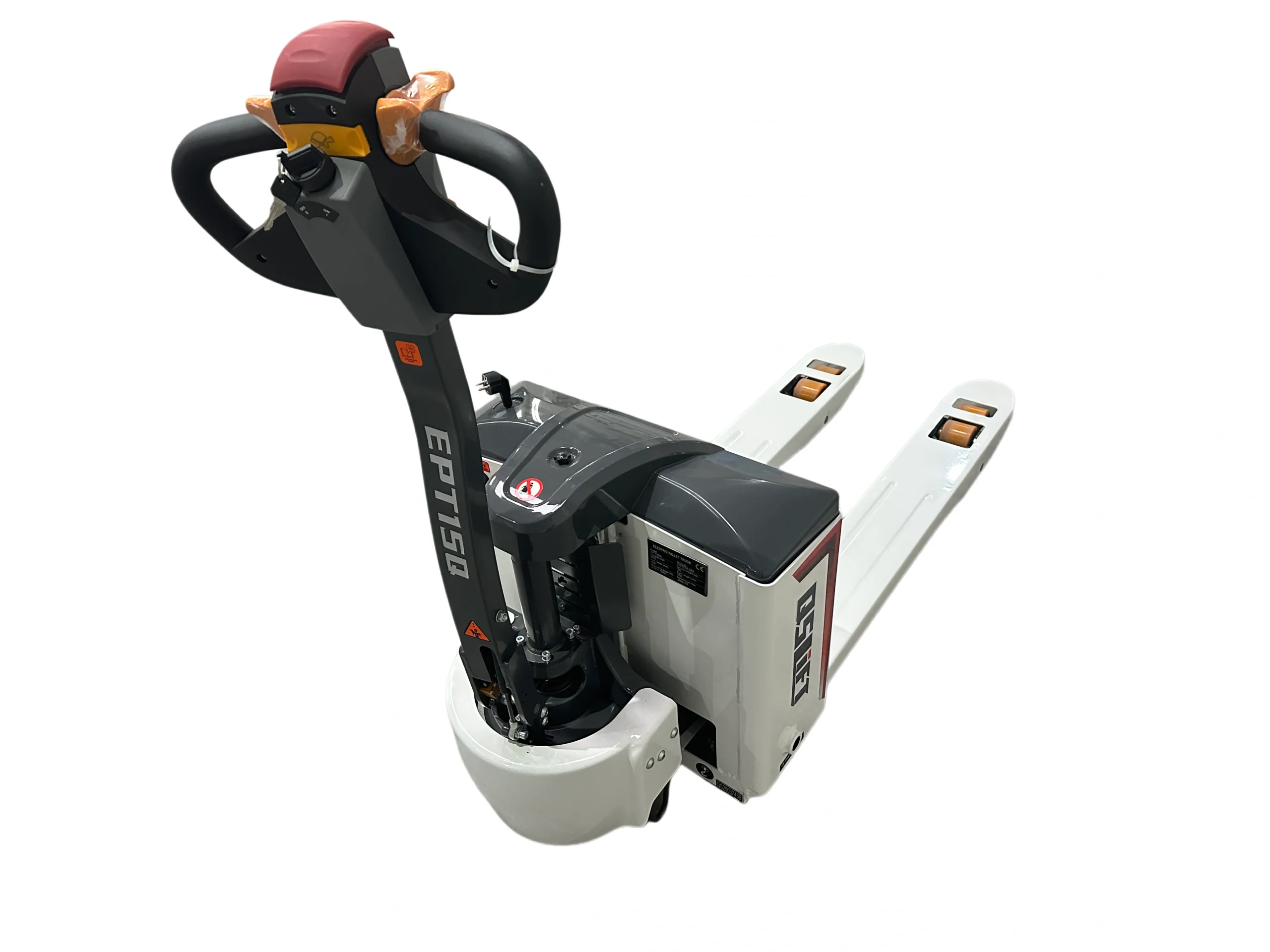

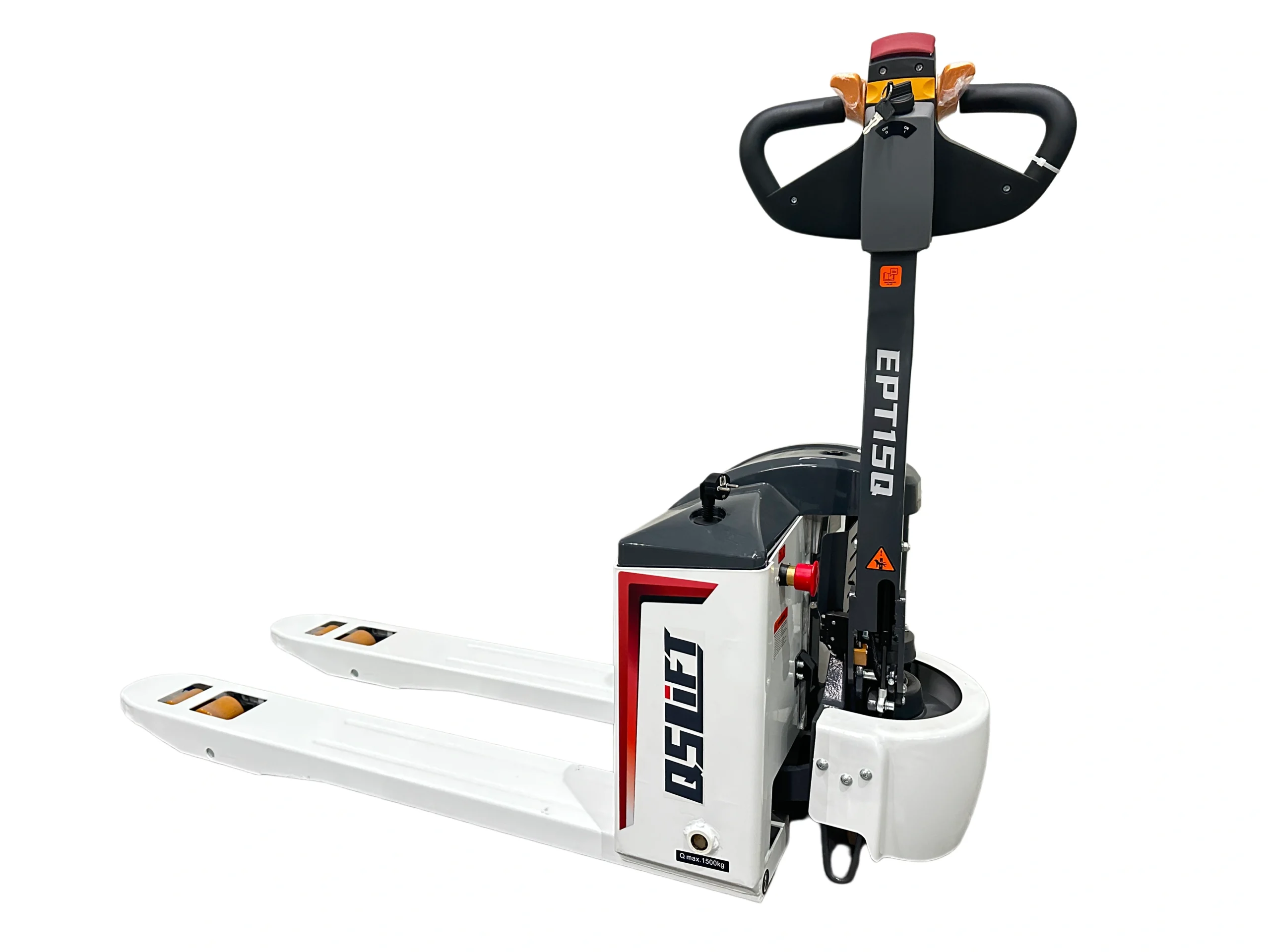

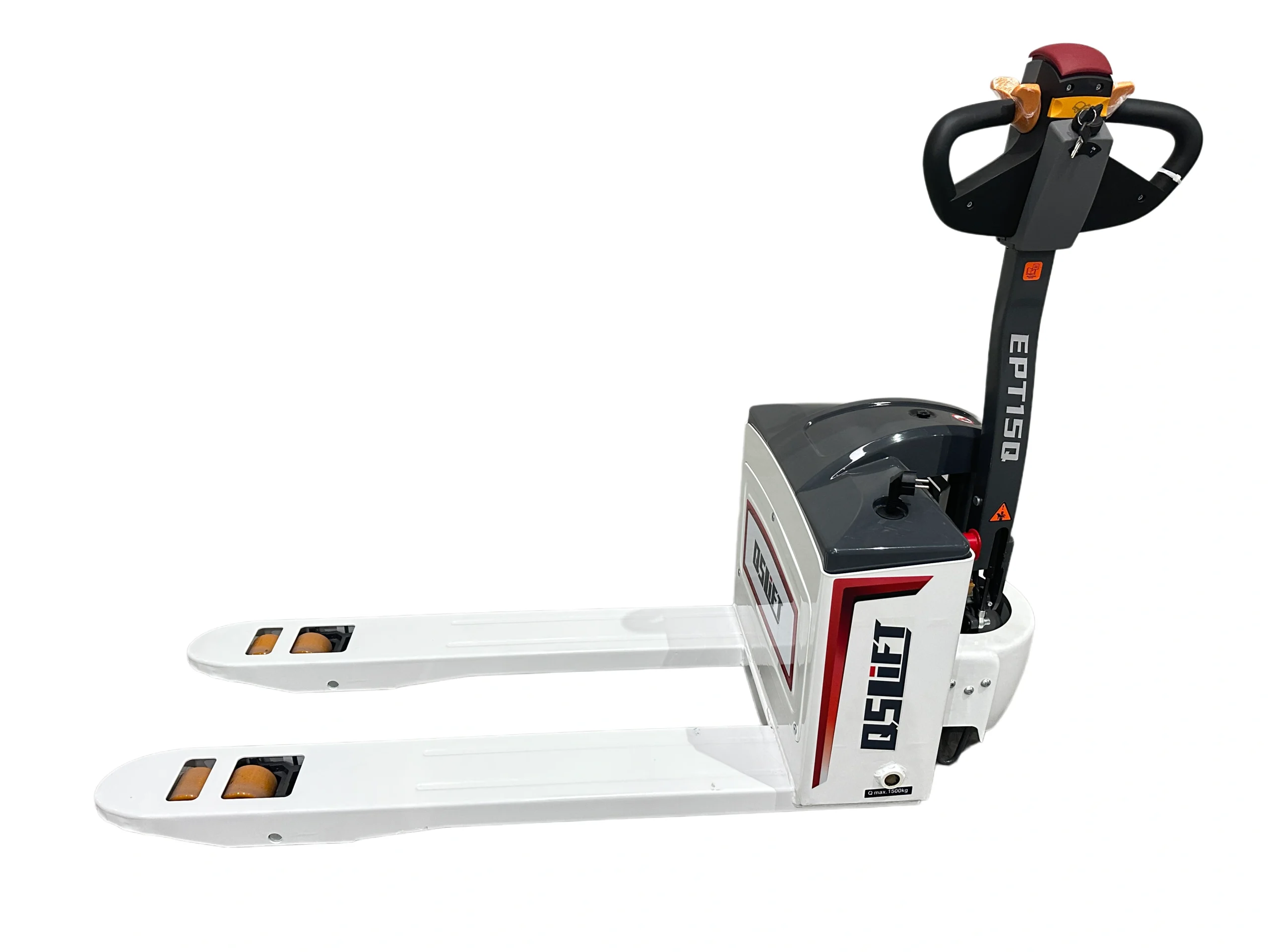

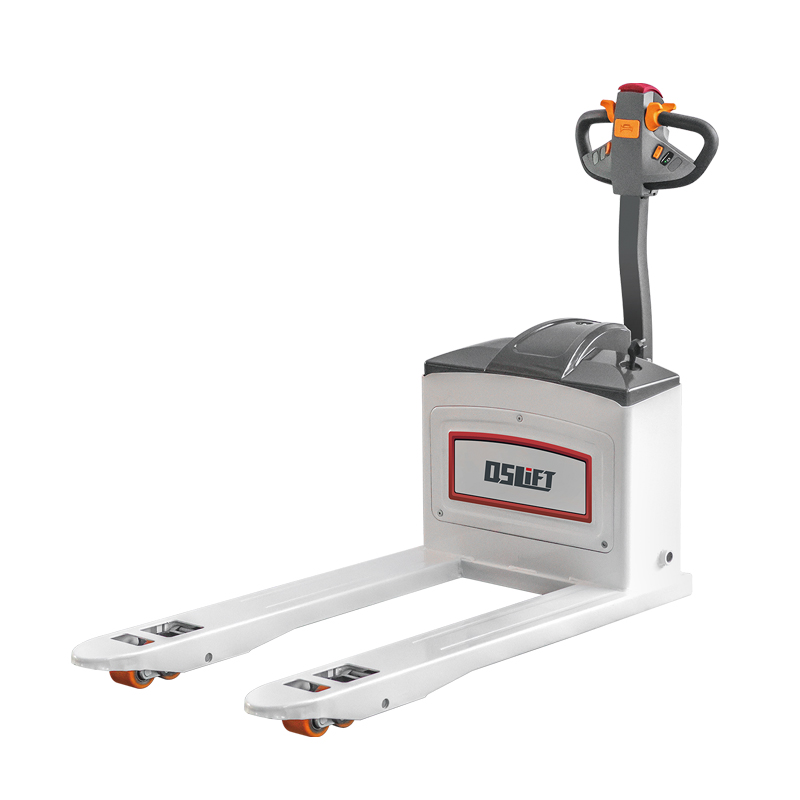

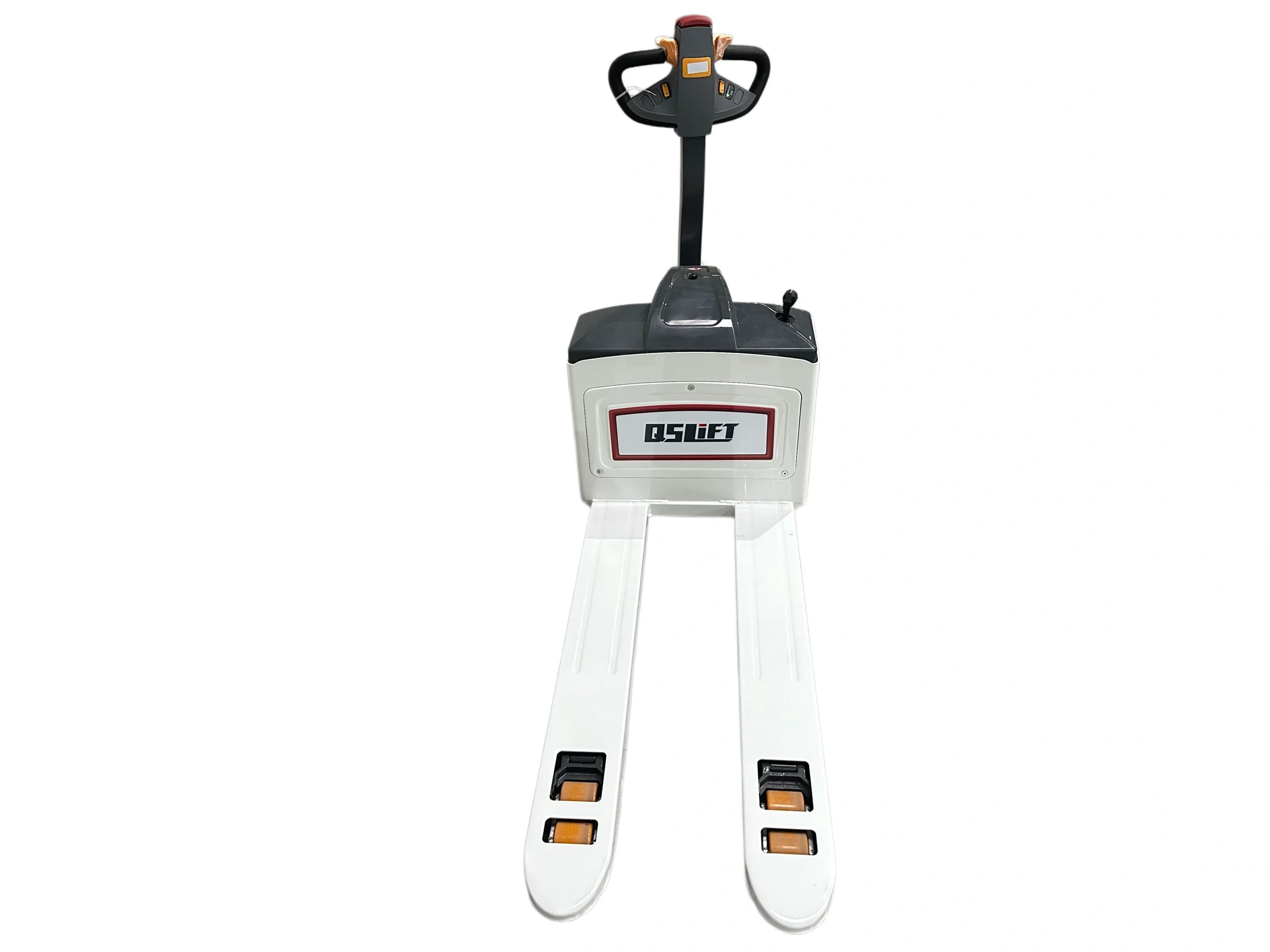

QSLiFT EPT15Q Electric Pallet Truck – The Agile and Efficient Entry-Level Solution

EPT15Q Electric Pallet Truck

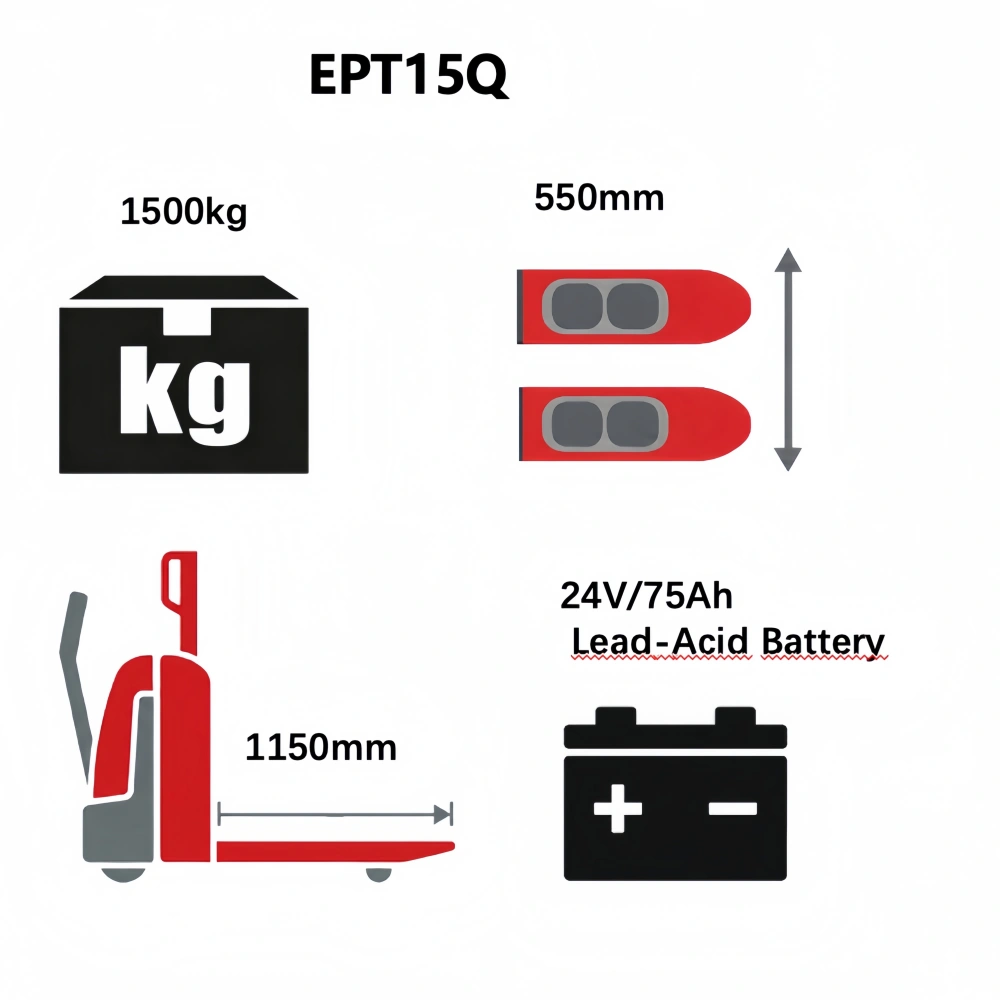

Load Capacity

1500kg

Battery Type

Lead-acid

Battery

2x12V/75Ah

Fork Length

1150 mm

Fork Width

550 mm

Turning Radius (Wa)

1393mm

Standard Retail Price:
1,180.00€ + PDV
QSLiFT EPT15Q Electric Pallet Truck – The Agile and Efficient Entry-Level Solution
×
Description

The EPT15Q is an electric pallet truck specifically designed for light to medium-duty material handling tasks. With its compact design and exceptional ergonomic features, this truck is the ideal choice for material transport in warehouses, retail supermarkets, and narrow production aisles. It combines high operational efficiency with maximum operator comfort.

Key Advantages at a Glance:

  • Compact and Maneuverable in Tight Spaces
    The high-strength, compact chassis design significantly reduces the turning radius. Whether in narrow racking aisles or inside delivery vehicles, the EPT15Q demonstrates outstanding agility.
  • Battery Type: Dual Maintenance-free Lead-acid Batteries (2x12V/75Ah): No water refilling required. Easy and fast charging for consistent daily operations.

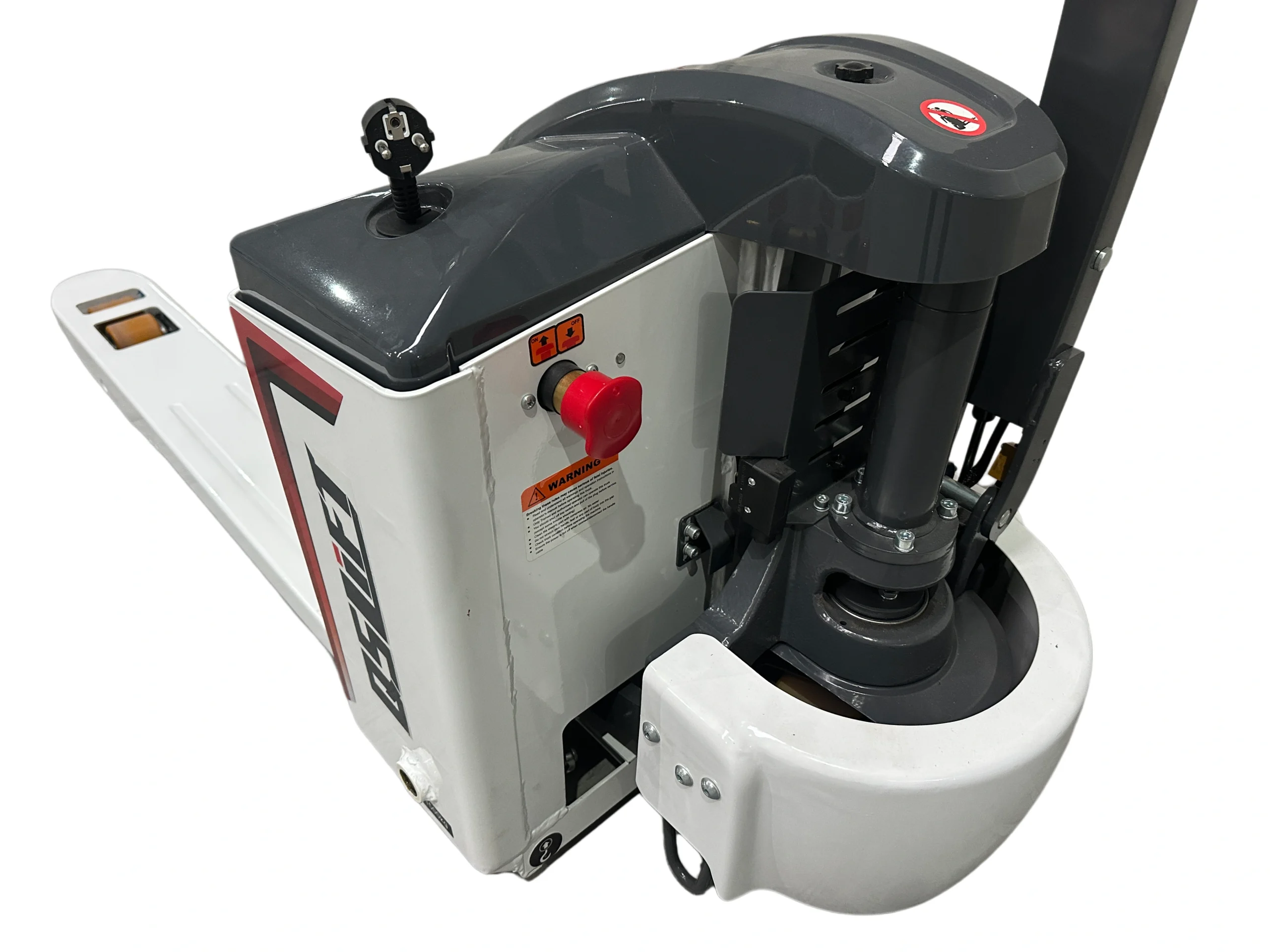

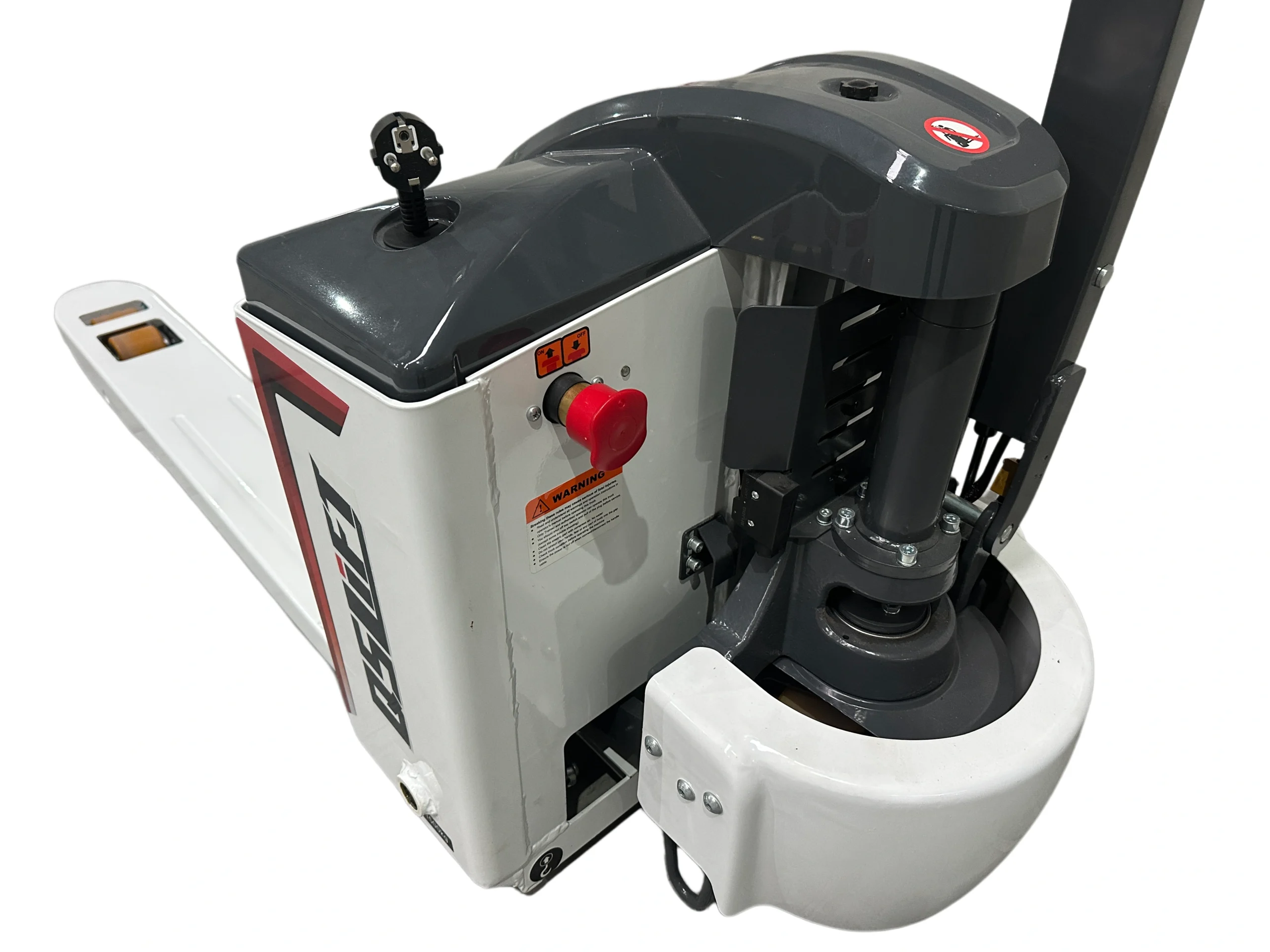

  • Robust Quality for Industrial Durability
    Equipped with a steel housing to effectively protect internal components from external impacts. High-quality polyurethane tandem rollers ensure smooth operation and extreme wear resistance, extending the equipment’s service life.

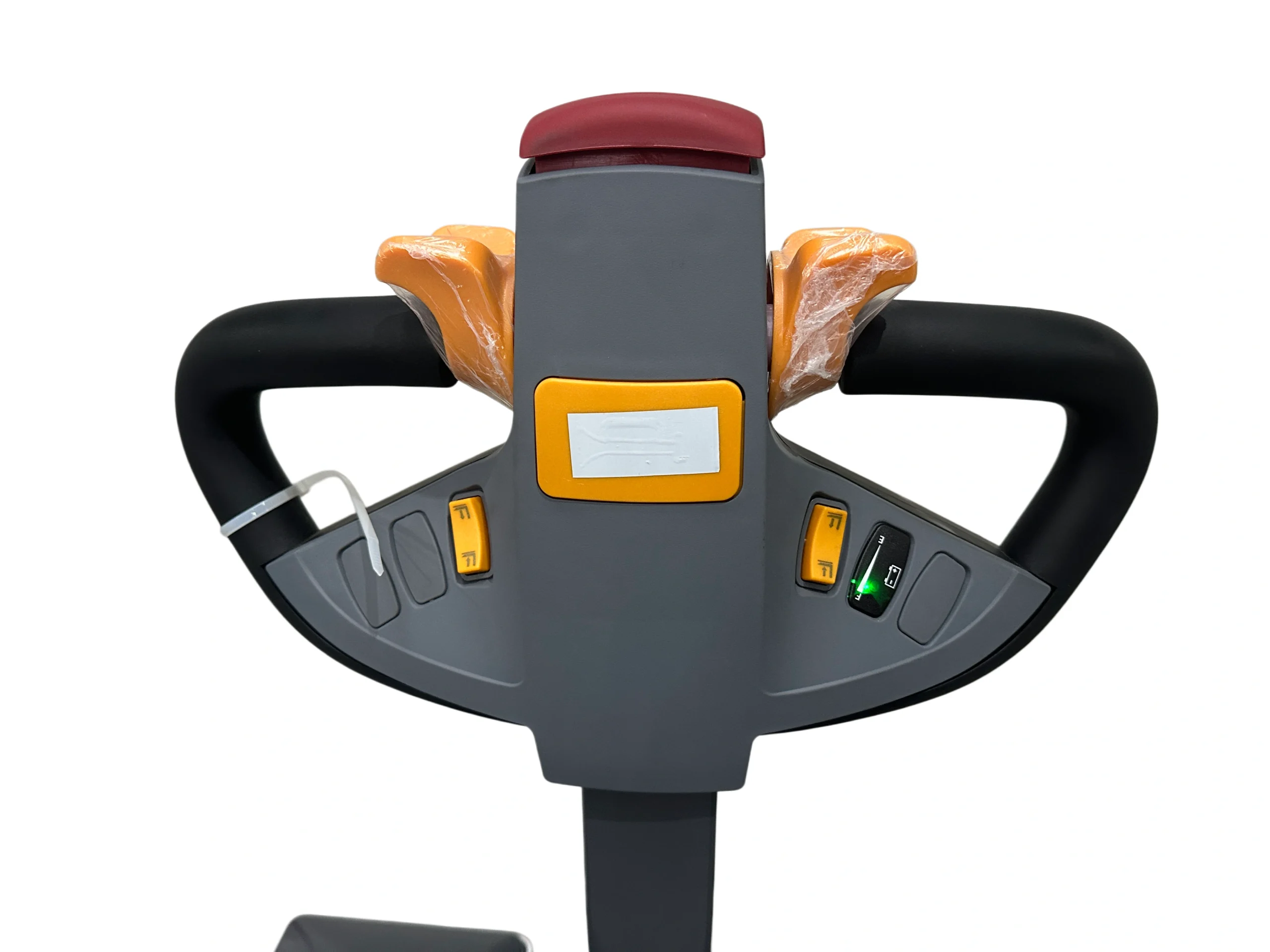

  • Precise and Safe Ergonomic Control
    The ergonomic long tiller arm integrates all control functions, including drive directions, battery display, and emergency braking. The unique “crawl speed” button ensures high precision and safety when maneuvering in cramped areas.

Clean and Reliable Hydraulic Technology
Utilizing an advanced hose-less hydraulic lifting system, it eliminates the risk of oil leaks at the source. This ensures a clean working environment and simplifies maintenance procedures.

Primary Technical Specifications

Performance MetricDetails
Rated Capacity1500 kg
Battery TypeLead-acid (Maintenance-free)
Battery Capacity12V / 75Ah (2 sets)
Service Weight193 kg (including battery)
Turning Radius1390 mm
Manufacturer’s type designationEPT15Q
1. Distinguishing mark
1.3Power (battery, diesel, petrol, gas, manual)Battery
1.4Operator typePedestrian
1.5Load capacity / Rated loadQ(t)1.5
1.6Load centre distanceC (mm)600
1.8Load distance, centre of drive axle to forkX (mm)944
1.9Wheelbasey (mm)1294
2. Weight
2.1Service weightkg187
2.2Axle loading, laden front/rearkg588/1111
2.3Axle loading, unladen front/rearkg145/43
3. Tires, chassis
3.1TiresPU
3.2Tire size, frontØ × w (mm)Φ210 × 75
3.3Tire size, rearØ × w (mm)Φ80 × 70
3.5Wheels, number front/rear (x=driven wheels)1x / 4
3.7Track, rearb11 (mm)390/525
4. Dimensions
4.4Lift heighth3 (mm)105
4.15Height, loweredh13 (mm)75/85
4.19Overall lengthl1 (mm)1648
4.20Length to face of forksl2 (mm)508
4.21Overall widthb1 (mm)560/685
4.22Fork dimensionss/e/l (mm)50/160/1150
4.35Turning radiusWa (mm)1393
5. Performance
5.1Travel speed, laden/unladenKm/h4.2 / 4.5
5.8Gradeability, laden/unladen%6 / 10
5.10Service brakeElectromagnetic
6. Motors
6.1Drive motor rating S2 60minkw0.75
6.4Battery voltage, nominal capacity K5V/Ah12 / 75 × 2
6.5Battery weight (minimum)kg18.8 × 2
8. Additional data
8.1Type of drive controlDC speed control
8.4Sound level at driver’s ear acc. to EN 12053dB(A)≤ 70
Load Capacity

1500kg

Battery Type

Lead-acid

Battery

2x12V/75Ah

Fork Length

1150 mm

Fork Width

550 mm

Turning Radius (Wa)

1393mm
